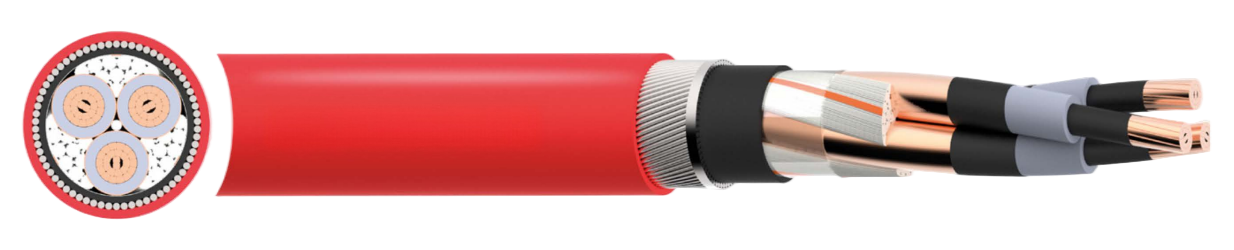

BS 6622 CU XLPE AWA/SWA PVC 6.35/11(12)kV Power Cable
Reliable underground and duct power distribution cable for medium voltage networks
$10.00
APPLICATION
Power cables for power networks, underground and in cable ducting.
STANDARDS
BS 6622, IEC 60502-2, IEC/EN 60228
Flame Retardant according to IEC/EN 60332- 1-2
CHARACTERISTICS
Voltage Rating Uo/U (Um)
6.35/11 (12)kV
Temperature Rating
Maximum conductor operating temperature: 90°C
Initial temperature at S.C.C for metallic screen: 80°C Maximum conductor temperature during S.C: 250°C
Minimum Bending Radius
Single core: 15 x overall diameter
Multi core: 12 x overall diameter
CONSTRUCTION
Conductor
Class 2 Stranded Circular Compacted Copper
Conductor Screen
Extruded Inner Semi Conductor (Bonded Type)
Insulation
XLPE (Cross-Linked Polyethylene)
Outer Semi Conductor
Extruded Outer Semi Conductor (Strippable Type)
Metallic Screen
Copper tape with 10% overlap
Inner Sheath
PVC (Polyvinyl Chloride)
Armour
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Galvanised Steel Wire Armoured)
Outer Sheath
PVC (Polyvinyl Chloride)
● Red● Black
