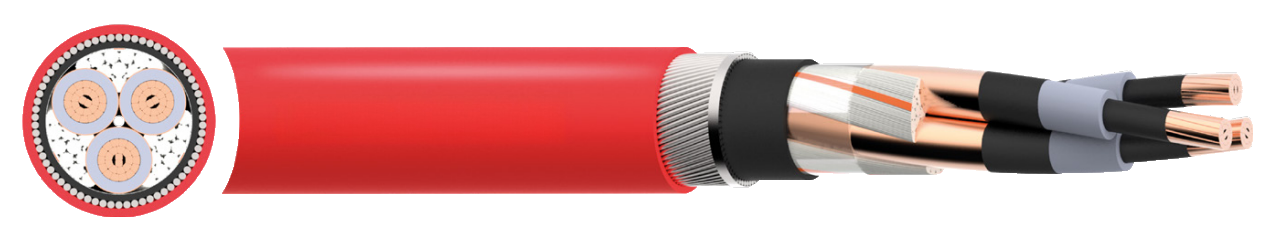

BS 6622 XLPE /PVC 12.7/22kV Medium Voltage Power Cable
Stranded Copper Conductor Cable with XLPE Insulation and PVC Sheath for Underground and Ducted Power Networks
$20.00
APPLICATION
Medium voltage PVC power cables for power networks, underground and in cable ducting.
STANDARDS
BS 6622, IEC/EN 60228
Flame Retardant according to IEC/EN 60332-1-2
CHARACTERISTICS
Voltage Rating Uo/U (Um)
12.7/22 (24) kV
Temperature Rating
Fixed: 0°C to +90°C
Initial temperature at S.C.C for metallic screen: 80°C Maximum conductor temperature during S.C: 250°C
Minimum Bending Radius
Fixed: 15 x overall diameter
CONSTRUCTION
Conductor
Class 2 stranded copper
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen
Individual or collective overall copper tape screen
Filler
PET (Polyethylene Terephthalate) fibres
Separator
Binding tape
Bedding
PVC (Polyvinyl Chloride)
Armour
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath
PVC (Polyvinyl Chloride)
Sheath Colour
● Red ● Black
