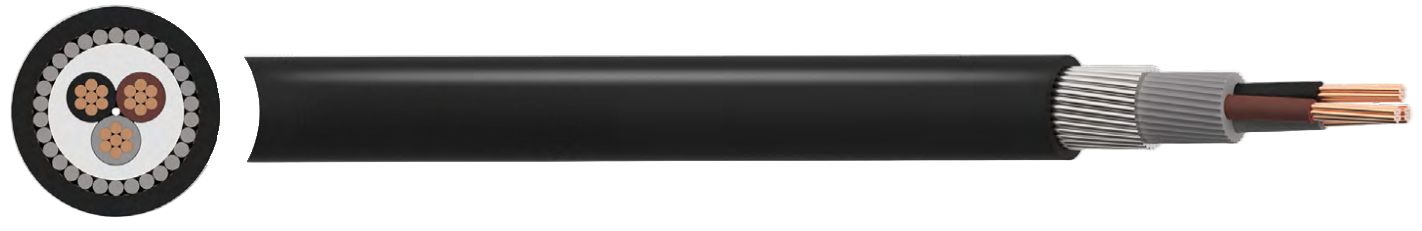

BS 6724 Copper Conductor Multi Core SWA LSZH BASEC 0.6/1kV Cable

APPLICATION

Multi-core LSZH cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks,underground, outdoor and indoor applications and for use in   cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed intallation: -20°C to +90°C

Minimum Bending Radius

1.5mm2 to 16mm2  - Fixed: 6 x overall diameter 25mm2  and above - Fixed: 8 x overall diameter

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

We are on a journey to Net Zero.

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

LSZH (Low Smoke Zero Halogen)

Armour

SWA (Steel Wire Armour)

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

2 core:  Brown     Blue

3 core: Brown      Black     Grey

3 core (optional) :      Green/Yellow     Blue      Brown

4 core:  Brown      Black     Blue     Grey

4 core (optional) :      Green/Yellow        Brown      Black      Grey

5 core:  Green/Yellow     Brown     Blue     Black     Grey

7 core and above:     White cores with      Black numbers

Sheath Colour

● Black

STANDARDS

BS 6724, EN/IEC 60228, EN/IEC 60502-1

Low Smoke Zero Halogen to EN/IEC 60754-1/2, EN/IEC 61034-2

Flame Retardant to EN/IEC 60332-1-2, EN/IEC 60332-3-24 Cat C, EN 50267-2-1,

UV Resistant
