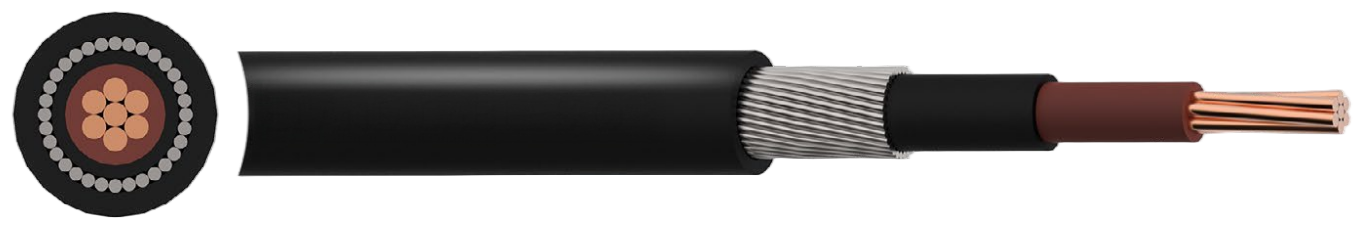

BS 6724 Copper Conductor Single Core AWA LSZH 1.9/3.3kV Cable
Low-smoke zero-halogen armoured copper cable for safe power and control installations indoors, outdoors, and underground
$15.00
STANDARDS
BS 6724, EN 60228
Low Smoke Zero Halogen to IEC/EN 61034, IEC/EN 60754 Flame retardant to IEC/EN 60332-1
UV Resistant
APPLICATION
Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
CHARACTERISTICS
Voltage Rating Uo/U
1.9/3.3kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
15 x overall diameter
CONSTRUCTION
Conductor
Class 2 stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Armour
AWA (Aluminium Wire Armour)
Outer Sheath
HFFR (Halogen free flame retardant)
Core Identification
● Brown
Sheath Colour
● Black
