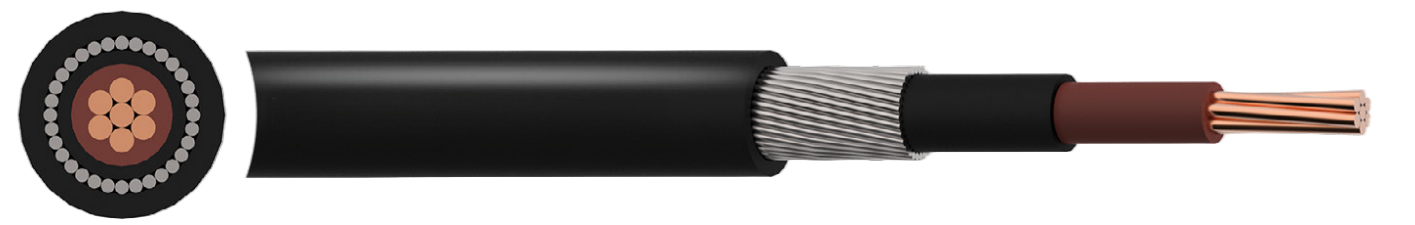

BS 6724 Copper Conductor Single Core AWA LSZH BASEC 0.6/1kV Cable
Fire-safe single-core aluminium cable with LSZH for underground, indoor, and outdoor power installations
$5.00
STANDARDS
BS 6724, IEC/EN 60502-1, EN 60228,
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-2
Flame Retardant to IEC/EN 60332-1-2, IEC/EN 60332-3-24 Cat C
UV Resistant
APPLICATION
Single core LSZH cable with aluminium wire armour (AWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Fixed: -20°C to +90°C
Minimum Bending Radius
Fixed: 8 x overall diameter
CONSTRUCTION

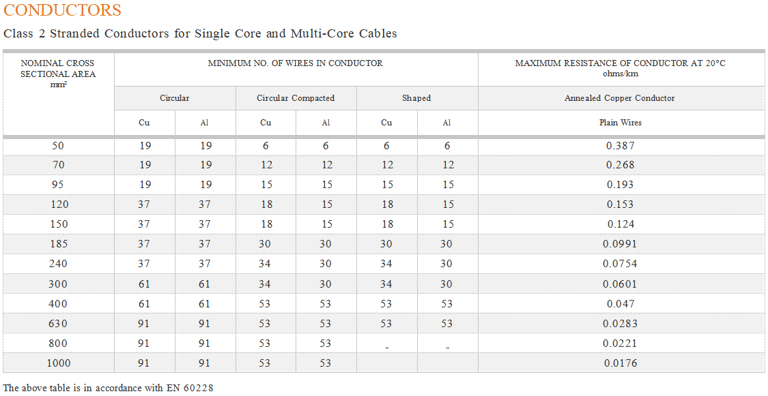

Conductor
Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
AWA (Aluminium Wire Armour)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
● Brown
Sheath Colour
● Black
