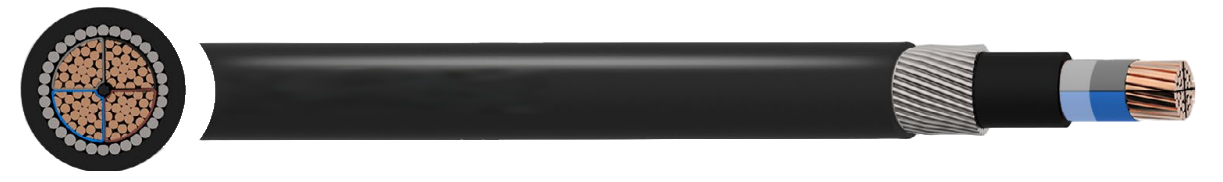

BS 6724 Sectoral Shaped Copper Conductor Multi Core SWA 1.9/3.3kV Cable

APPLICATION

The BS 6724 1.9/3.3kV sector shaped cable is suitable for direct burial free-draining soil conditions for fixed indoor

and outdoor installations. Low level of smoke emission and corrosive gasses in case of fire.

CHARACTERISTICS

Voltage Rating Uo/U

1.9/3.3kV

Test Voltage

Between conductors: 1125kV

Between each conductor and armour: 650kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

8 x overall diameter
