BS 6724 Single Core LSZH Cable (0.6/1kV)

Fire-resistant LSZH construction with aluminum armor for critical installations

$20.00

APPLICATION

Single core LSZH cable with aluminium wire armour (AWA). Power and auxiliary ﬁxed wiring cables for use in power

networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where ﬁre, smoke

emission and toxic fumes create a potential threat to life and equipment.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -20°C to +90°C

Minimum Bending Radius

Fixed: 8 x overall diameter

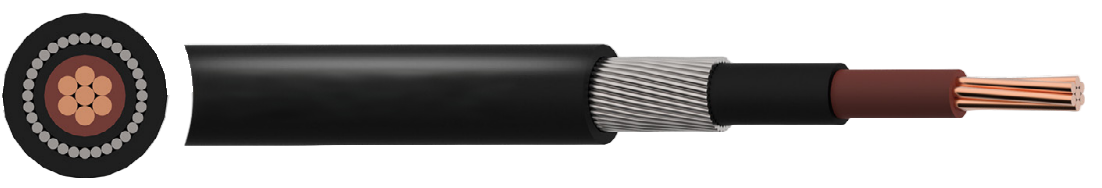

CONSTRUCTION

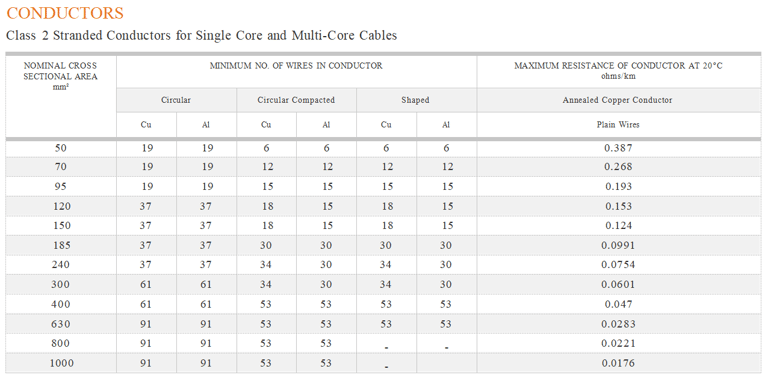

Conductor

Class 2 stranded copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

LSZH (Low Smoke Zero Halogen)

Armour

AWA (Aluminium Wire Armour)

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

● Brown

Sheath Colour

● Black

STANDARDS

BS 6724, IEC/EN 60502-1, EN 60228,

Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-2

Flame Retardant to IEC/EN 60332-1-2, IEC/EN 60332-3-24 Cat C

UV Resistant
