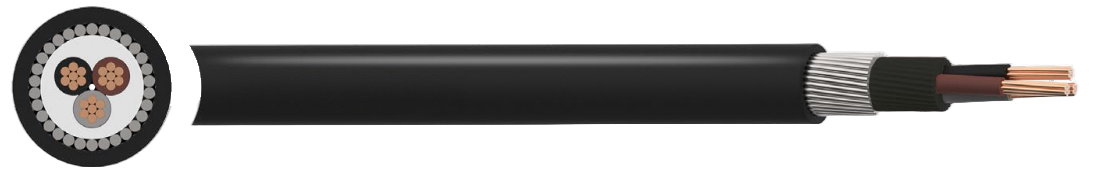

BS 6724 SWA Multi Core Copper Conductor 1.9/3.3kV Cable
Fire-safe armoured copper cable for power and control in underground, indoor, and outdoor networks
$15.00
APPLICATION
Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
STANDARDS
BS 6724, IEC/EN 60228, IEC/EN 60502-1
Low Smoke Zero Halogen to IEC/EN 61034, IEC/EN 60754
Flame retardant to EN / IEC 60332-1 UV Resistamt
CHARACTERISTICS
Voltage Rating Uo/U
1.9/3.3kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
12 x overall diameter
CONSTRUCTION
Conductor
Class 2 stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Armour
SWA (Galvanised Steel Wire Armour)
Outer Sheath
HFFR (Halogen free flame retardant)
Core Identification
Brown Black Grey
Sheath Colour
● Black
