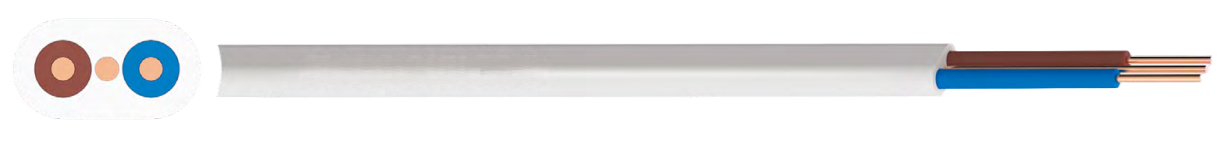

BS 7211 624-B Twin and Earth LSZH Cable
Installation in walls, on boards and in channels or embedded in plaster.
$1.00
APPLICATION
Installation in walls, on boards and in channels or embedded in plaster. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
CHARACTERISTICS
Voltage Rating Uo/U 300/500V
Temperature Rating
+5°C to +70°C
Minimum Bending Radius
3 x overall diameter
CONSTRUCTION
Conductor
1mm2 to 2.5mm2 : Class 1 solid conductor
4mm2 to 10mm2 : Class 2 stranded conductor
Circuit Protection Conductor (Earth)
1mm² to 2.5mm²: Class 1 solid copper conductor
4mm² to 16mm²: Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Sheath
LSZH (Low Smoke Zero Halogen)
Insulation Colour
2 core: Blue Brown
3 core: ● Brown ● Black ● Grey
Sheath Colour
White
