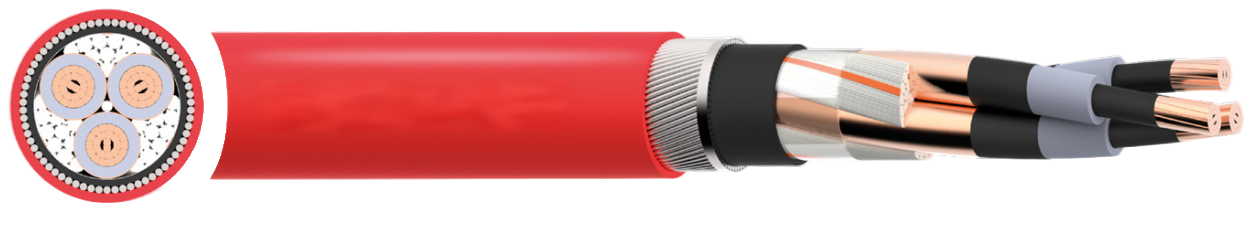

BS 7835 3.8/6.6kV Power Cable
Armoured medium voltage cable for external power distribution and direct burial installations
$12.00
APPLICATION
Armoured power distribution cables for external and direct burial applications in power networks.
STANDARDS
BS 7835, IEC/EN 60228
Flame Retardant according to IEC/EN 60332-1-2,
IEC/EN 60332-3-24
Low Smoke Halogen Free according to IEC/EN 60754-1/2, IEC/EN 61034-1/2
UV Resistant
CHARACTERISTICS
Voltage Rating Uo/U (Um)
3.8/6.6 (7.2) kV
Test Voltage (AC) 15kV
Temperature Rating
Maximum operating temperature: 90°C
Maximum short circuit temperature: 250°C
Minimum Bending Radius
Single core: 15x overall diameter
Multi core: 12 x overall diameter
(Single core 12 x overall diameter and 3 core 10 x overall diameter where bends are positioned adjacent to a joint or termination provided that the bending is
carefully controlled by the use of a former)
CONSTRUCTION
Conductor
Class 2 stranded compacted copper conductor
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
MetallicScreen
Concentric copper wires and copper tape
Separator
Binding tape
Inner Sheath
LSZH (Low Smoke Zero Halogen)
Armour
Single core: AWA (Aluminium Wire)
Multi core: SWA (Galvanised steel wire)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Red
