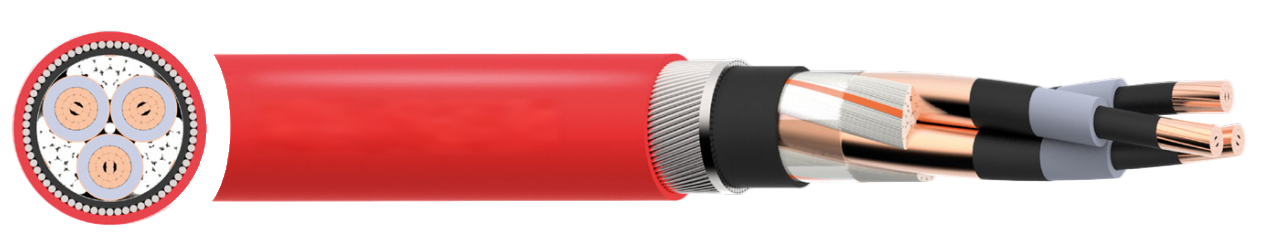

BS 7835 XLPE LSZH 6.35/11 (12)kV Cable
Fire-safe medium voltage power cable with LSZH for underground, outdoor, and ducted installations
$10.00
APPLICATION Power cables for power networks, underground, outdoors and in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. |
STANDARDS
BS 7835, EN 60228, IEC/EN 60502-2,
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN
61034-1/2
Flame Retardant to IEC/EN 60332-1-2, IEC/EN 60332-3-24 UV Resistant
CHARACTERISTICS
Voltage Rating Uo/U (Um)
6.35/11 (12)kV
Temperature Rating
Fixed: 0°C to +90°C
Minimum Bending Radius
Single core - Fixed: 15 x overall diameter
3 core - Fixed: 12 x overall diameter
(Single core 12 x overall diameter and 3 core 10 x overall diameter where bends are positioned adjacent to a joint or termination provided that the bending is carefully controlled by the use of a former)
CONSTRUCTION
Conductor
Class 2 stranded copper conductor
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen
Individual or overall copper tape screen
Filler
PET (Polyethylene Terephthalate) fibres
Separator
Binding tape
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Red ● Black
