BS 7835 XLPE LSZH 6.35/11 (12)kV Cable
STANDARDS BS 7835, EN 60228, IEC/EN 60502-2
$15.00
APPLICATION Power cables for power networks, underground, outdoors and in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. |
CHARACTERISTICS Voltage Rating Uo/U (Um) 6.35/11 (12)kV Temperature Rating Fixed: 0°C to +90°C Minimum Bending Radius Single core - Fixed: 15 x overall diameter 3 core - Fixed: 12 x overall diameter (Single core 12 x overall diameter and 3 core 10 x overall diameter where bends are positioned adjacent to a joint or termination provided that the bending is carefully controlled by the use of a former) |

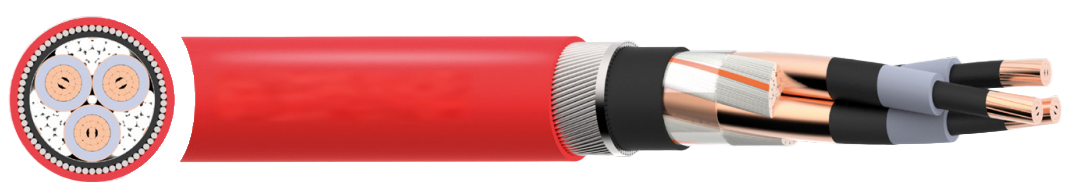

CONSTRUCTION
Conductor
Class 2 stranded copper conductor
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen
Individual or overall copper tape screen
Filler
PET (Polyethylene Terephthalate) fibres
Separator
Binding tape
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Red ● Black
