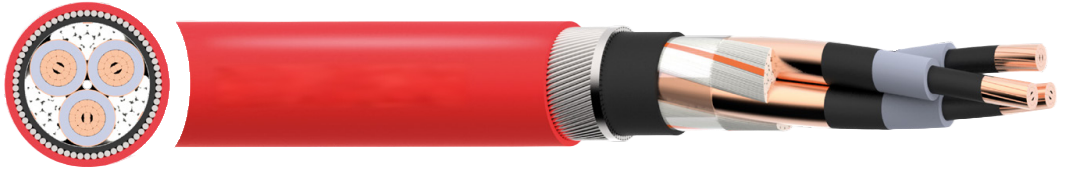

BS 7835 XLPE / LSZH Medium Voltage 19/33 (36)kV Cable
STANDARDS BS 7835, IEC/EN 60228, IEC/EN 60502-2
$25.00
APPLICATION Power cables for power networks, underground and in cable ducting, in installations with potential threat to life and equipment in the event of fire, smoke and toxic fumes emissions. |
CHARACTERISTICS Voltage Rating Uo/U (Um) 19/33 (36)kV Temperature Rating Fixed: 0°C to +90°C Minimum Bending Radius Single core - Fixed: 15 x overall diameter 3 core - Fixed: 12 x overall diameter (Single core 12 x overall diameter and 3 core 10 x overall diameter where bends are positioned adjacent to a joint or termination provided that the bending is carefully controlled by the use of a former) |
CONSTRUCTION
Conductor
Class 2 stranded copper conductor according to BS EN 60228 (previously BS 6360)
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene) Type GP8 according to BS 7655
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen
Individual or overall copper tape screen according to BS 7835
Filler
PET (Polyethylene Terephthalate) fibres
Separator
Binding tape
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Red ● Black
