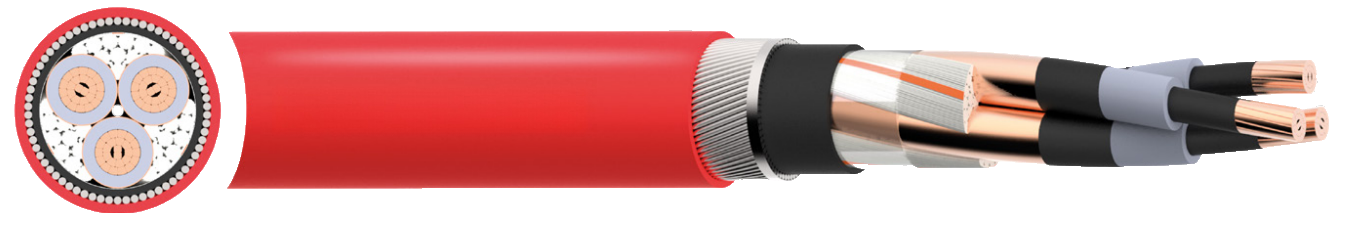

BS 7835 XLPE/LSZH Sheathed 12.7/22kV Medium Voltage Power Cable
Stranded Copper Conductor Cable with XLPE Insulation and Low Smoke Zero Halogen Sheath for Underground and Duct Applications
$15.00
APPLICATION
Medium voltage LSZH power cables for power networks, underground and in cable ducting.
STANDARDS
BS 7835, IEC/EN 60228
CHARACTERISTICS
Voltage Rating Uo/U (Um)
12.7/22 (24) kV
Temperature Rating
Fixed: 0°C to +90°C
Minimum Bending Radius
Single core - Fixed: 15 x overall diameter
3 core - Fixed: 12 x overall diameter
(Single core 12 x overall diameter and 3 core 10 x overall diameter where bends are positioned adjacent to a joint or termination provided that the bending is carefully controlled by the use of a former)
CONSTRUCTION
Conductor
Class 2 stranded copper
Conductor Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen
Individual or collective overall copper tape screen
Filler
PET (Polyethylene Terephthalate) fibres
Separator
Binding tape
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour

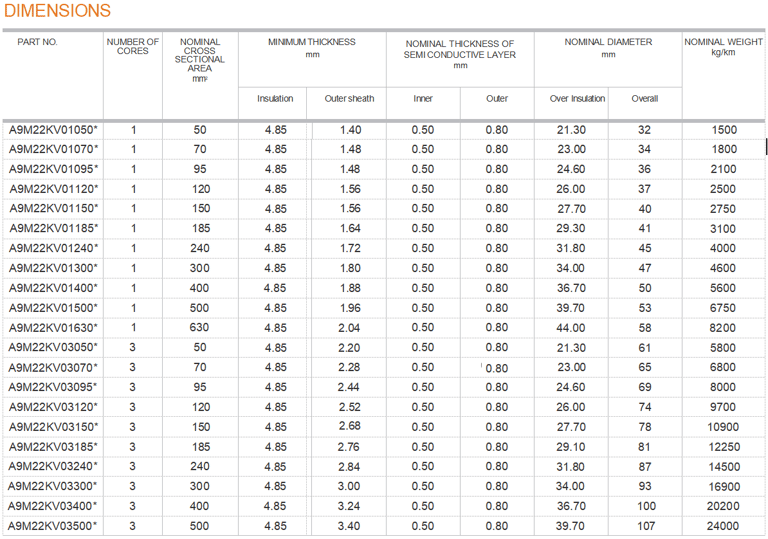

● Red ● Black
