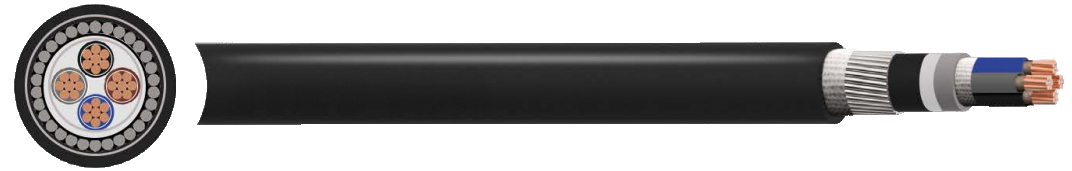

BS 7846 F120 Armoured Fire Performance Power Cable
These armoured fire performance power cables are fire resistant and designed for direct impact.
$45.00
APPLICATION These armoured fire performance power cables are fire resistant and designed for direct impact. Designed to meet the application of fire, direct impact and water jet as specified in BS 8491, making them suitable for use as 120 minute rated category 3 power cables according to BS 8519. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Operating Temperature -20ºC to +90ºC Minimum Bending Radius During Installation: 8 x overall diameter |
CONSTRUCTION
Conductor
Class 2 stranded copper
Fire Barrier
MGT (Mica Glass Tape)
Insulation
XLPE (Cross-Linked Polyethylene)
Inner Barrier
Glass Tape
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
SWA (Galvanised Steel Wire Armour)
Outer Barrier
Glass Tape
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
2 core : Brown Blue
3 core: Brown Black Grey
4 core: ● Brown Black ● Grey ● Blue
5 core: B Brown Black Grey Blue Green/Yellow
Sheath Colour
Black
