BS 8436 LSZH Cable
APPLICATION：Screened cable for use in walls, partitions and building voids where there is a risk of damage or penetration from nails, screw fixings etc.
$1.00
CHARACTERISTICS
Voltage Rating Uo/U 300/500V
Temperature Rating
Fixed: -25°C to +90°C
Minimum Bending Radius
Fixed: 6 x overall diameter

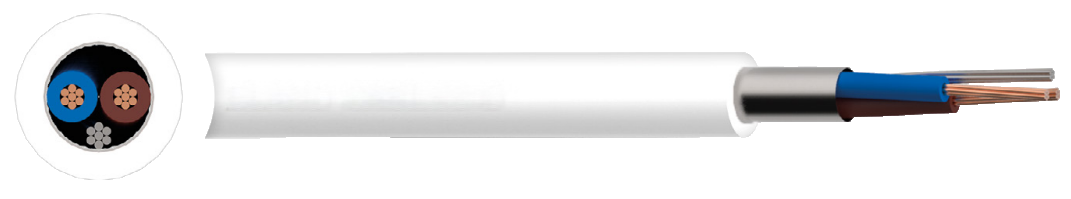

CONSTRUCTION
Conductor
Class 2 stranded copper conductor
Class 1 solid copper conductor available on request
Insulation
XLPE (Cross-Linked Polyethylene)
Circuit Protective Conductor
Tinned copper
Screen
Tubed aluminium
Sheath
LSZH (Low Smoke Zero Halogen)
Insulation Colour
2 core + earth: Brown Blue
3 core + earth: ● Brown ● Black Grey
4 core + earth: ● Brown ● Black ● Grey ● Blue
Outer Sheath Colour
White
Other colours available on request
