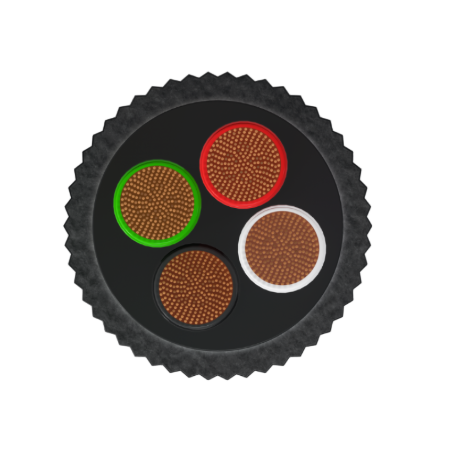

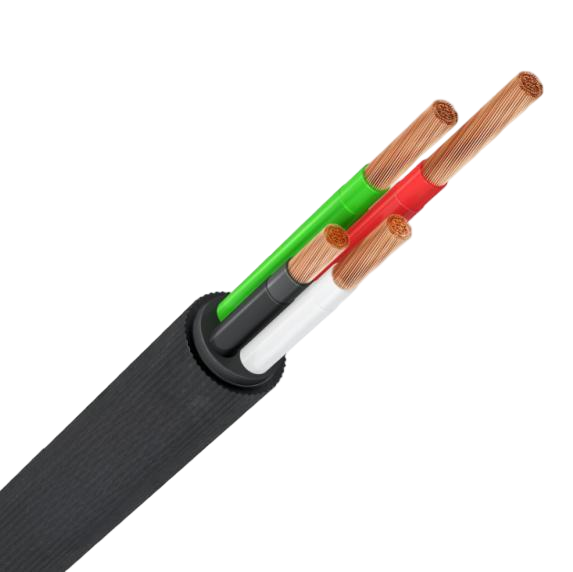

CABLE MULTIFLEX TC 600V
Multiconductor cable of two, three, four or five soft copper flexible conductors.
APPLICATION
Light duty cable used as a service cord for connection of portable tools and extension of appliances, in open installations and portable extensions with terminals. It can be used as a control cable where electrostatic shielding is not required.
Suitable for low voltage electrical power distribution, to be installed in sumps, installation in ducts and gutters, connection of boards and wiring in industrial or commercial buildings, for direct burial with light traffic, for installations in cable trays in dry, moisture, wet environments and outdoors. It can be used as a feeder cable for submersible pumps in water.
CONSTRUCTION
Conductor
Extra-flexible soft copper conductors.
Insulation
Thermoplastic compound in polyvinyl chloride (PVC), flame retardant, fire retardant (FR), resistant to abrasion, heat and dry, moisture and wet environments. Compound free of hazardous substances (RoHS).
Individual Jacket
A Nylon cover resistant to contact with oils and petroleum derivatives such as gasoline is applied over the insulation.
Overall Jacket
External cover with thermoplastic compound in polyvinyl chloride (PVC), flame retardant, resistant to abrasion, moisture, impact (ER), sunlight resistant (SR) . Compound free of hazardous substances (RoHS).
Identification
Conductors identification:
Two conductors: black-white.
Three conductors: black-white-green.
Four conductors: black-white-red-green.
Five conductors: yellow-blue-red-white-green.
Operating Temperature
90°C in dry, moisture and wet places.
Operating Voltage
600V
