Cable Premium Potencia Media Tensión Aluminio XLPE-TR/PE 15kV 133% N=1/3
Premium Medium Voltage Aluminum Power Cable meets all the requirements of the ICEA S-94-649 Standard.
APPLICATION AND FEATURES
Power supply of 15kV Medium Voltage circuits at 133% insulation level, mainly the connection between the feeder transformer and the electrical distribution network. Cables suitable for installation in outdoorsexposed to sunlight, underground ducts, directly buried, in dry or wet locations.
Main features:
• Directly buriedinstallation, according to ICEA S-94-649 standard.
• Resistance to solar rays, complying with the test defined in the ICEA S-94-649 standard, exposure to 720 hours.
• Cable designed to be permanently submerged in water according to the condition AD8, according to the test procedure of the NBR 14039 standard.

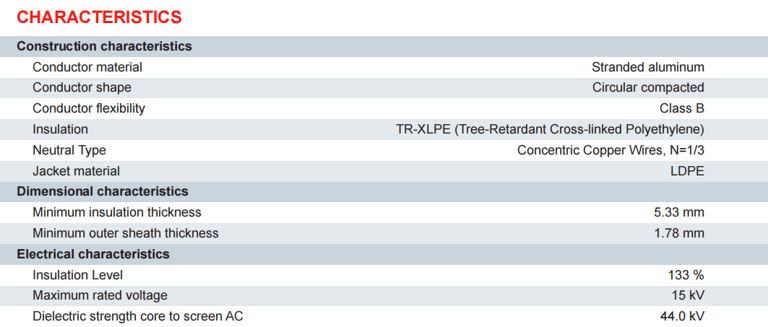

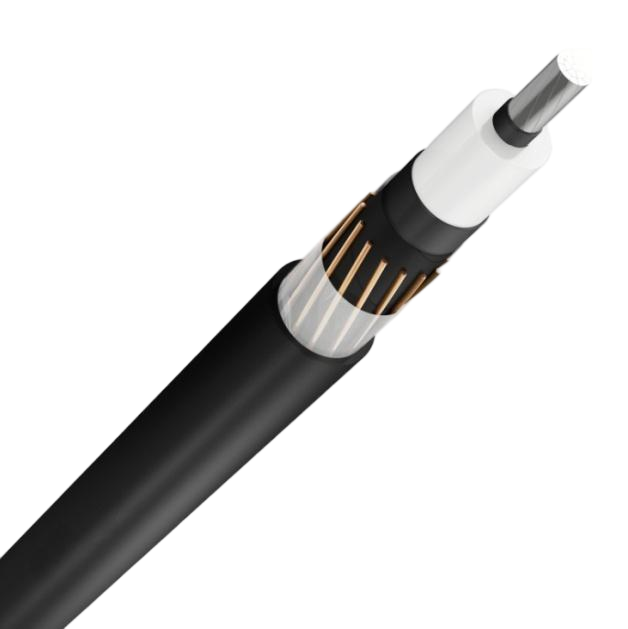

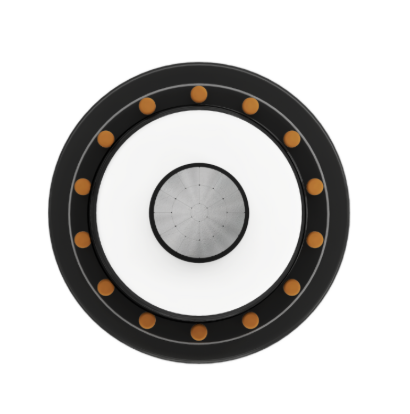

Construction
1. Conductor: Compacted Aluminum, class B with moisture blocking.
2. Internal semi-conductor: Extruded compound.
3. Insulation: Cross-linked polyethylene XLPE-TR.
4. External semi-conductor: Peelable extruded compound.
5. Concentric Neutral: Made up of copper wires N=1/3, with water blocking tapes before and after the wires.
6. Outer jacket: LDPE compound resistant to heat, abrasion and humidity, resistant to solar rays (SR), black color.
Operating Temperature
90°C.
Operating Voltage
15 kV.
Identification
Natural insulation color and black external jacket. Sequential length meter by meter with return to zero.
