Cable Premium Potencia Media Tensión Aluminio XLPE-TR/PE 18/30kV N=16mm2 (-2OL)

APPLICATION AND FEATURES

Power supply of  18/30(36) kV  Medium Voltage circuits, mainly the connection between the feeder transformer and the electrical distribution network. Cables suitable for  installation  in  outdoors exposed  to  sunlight,  underground  ducts, directly buried, in dry or wet locations.

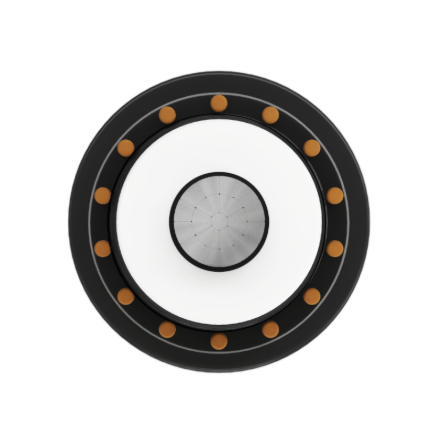

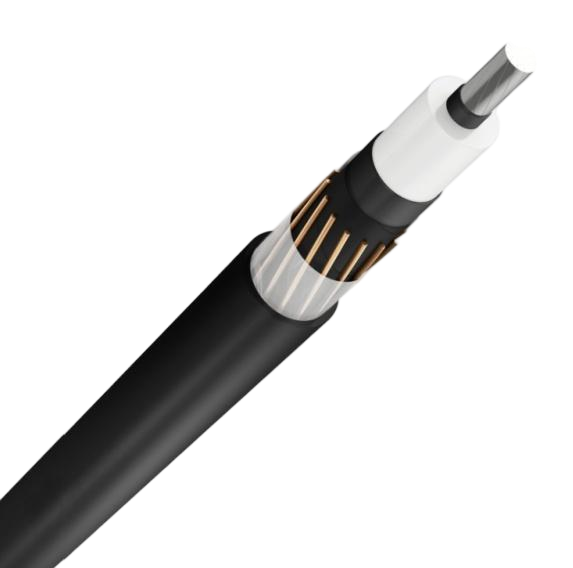

CONSTRUCTION

1. Conductor: Compacted Aluminum, class B with moisture blocking.

2. Internal semi-conductor:Extruded compound.

3. Insulation:Cross-linked polyethylene XLPE-TR (Tree retardant).

4. External semi-conductor:Peelable extruded compound.

5. Concentric Neutral:Made up of copper wires N=16mm2, with water blocking tapes before and after the wires.

6. Outer jacket:LDPE compound resistant to heat, abrasion and humidity, resistant to solar rays (SR), black color.
