Cable Premium Potencia Media Tensión Aluminio XLPE-TR/PE 35kV 133% N=1/3

APPLICATION AND FEATURES

Power supply of 35kV Medium Voltage circuits at 133% insulation level, mainly the connection  between  the  feeder  transformer  and  the  electrical  distribution network.    Cables    suitable    for    installation    in    outdoorsexposed    to sunlight, underground ducts, directly buried, in dry or wet locations.

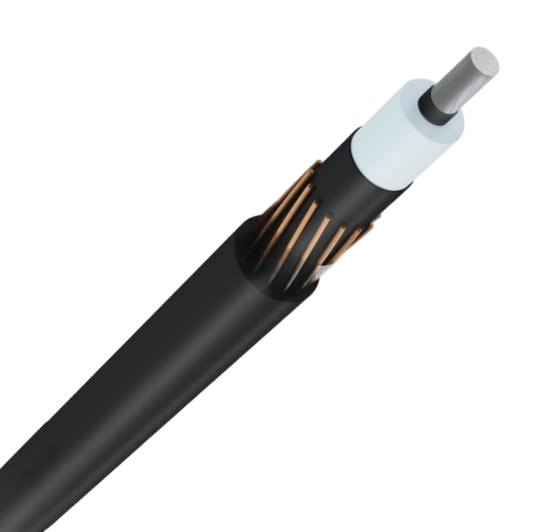

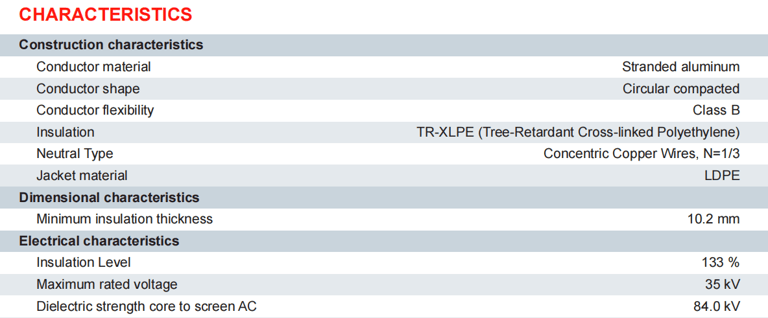

Construction

1. Conductor: Compacted Aluminum, class B with moisture blocking.

2. Internal semi-conductor:Extruded compound.

3. Insulation:Cross-linked polyethylene XLPE-TR (Tree retardant).

4. External semi-conductor:Peelable extruded compound.

5. Concentric Neutral:Made up of copper wires N=1/3, with water blocking tapes before and after the wires.

6. Outer jacket:LDPE compound resistant to heat, abrasion and humidity, resistant to solar rays (SR), black color.

Operating Temperature

90°C.

Operating Voltage

35 kV.

Identification

Natural insulation color and black external jacket. Sequential length meter by meter with return to zero.
