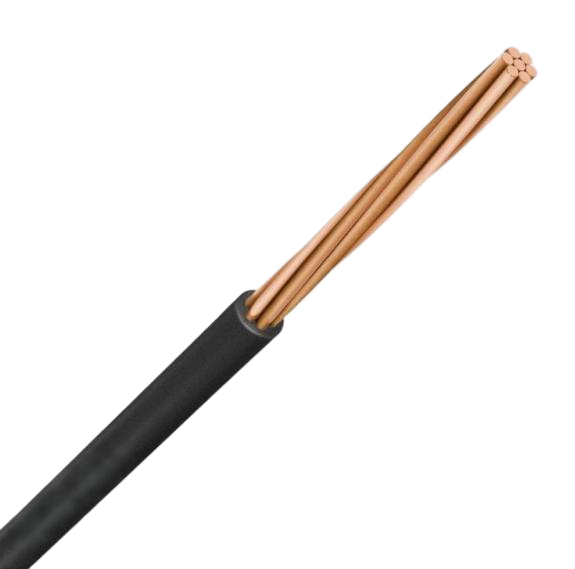

CABLE XHHW-2 Cu 90°C 600 V CT
Soft tempered copper conductor, insulated in XLPE compound.
APPLICATION
XHHW–2 cables are used for low voltage electrical power
distribution, in the connection of board, motors and wiring in buildings, for
installation conditions in dry and wet locations.
They are suitable for installation in conduits, pipes, and cable trays according to
RETIE article 20.3, paragraph J, starting at 12 AWG gauge.
CONSTRUCTION
Conductor

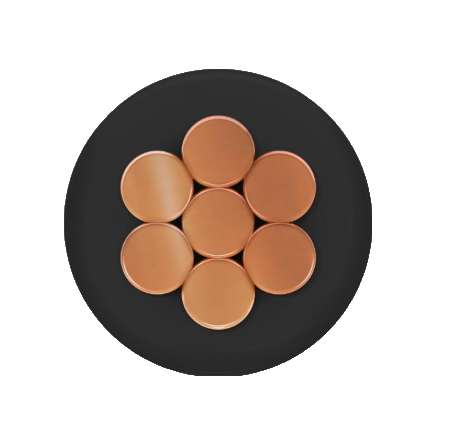

Soft copper conductor, stranded class B.
Insulation
Cross-linked polyethylene (XLPE) insulation, flame retardant (FR), resistant to abrasion, heat and humidity.
Operating Temperature
90°C
Operating Voltage
600 V
Identification
Black color insulation.
Sequential length meter by meter with return to zero.
