CAN BUS CABLES 120Ω
Cable
Application
These cables are dedicated to the shipbuilding industry.
Standards
IEC 60092-350/352/353/360/370/376
IEC 60332-1-2
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

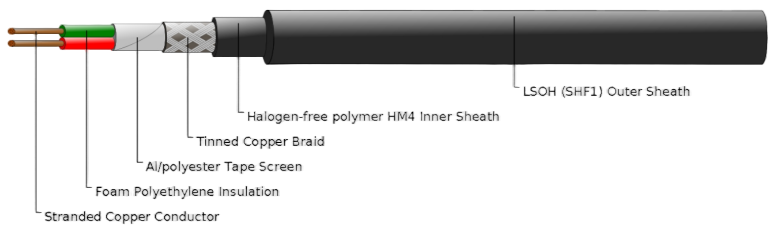

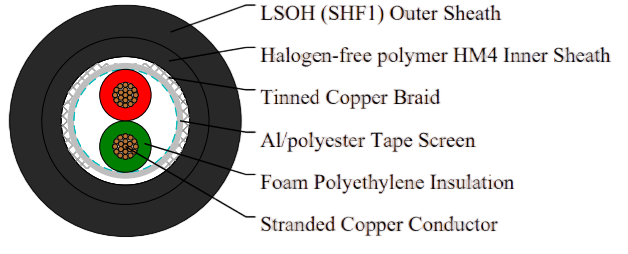

Construction
Conductors : Stranded tinned copper 21AWG.
Insulation : Foam skin PP.
Inner Sheath : Thermoplastic copolymer (FRNC).
Overall Screen1 : Aluminium/polyester tape.
Overall Screen2 : Tinned copper braid.
Outer Sheath : LSOH (SHF1).
Core Identification
Pair 1 : Blue, Red
Pair 2 : Brown, Green
Electrical Characteristics
Characteristic Impedance | Ω | 120 ± 18 | |
|---|---|---|---|
Mutual Capacitance @1KHz | nF/km | 36 | |
Insulation Resistance | 5 | ||
|
| 1 pair | 2 pair |
Attenuation @0.1MHz | dB/100m | 0.65 | 0.3 |
Attenuation @1MHz | dB/100m | 1.9 | 1.1 |
Attenuation @5MHz | dB/100m | 4.3 | 2.8 |
Attenuation @10MHz | dB/100m | 8.1 | 3.9 |
Attenuation @20MHz | dB/100m | 10.5 | 5.7 |

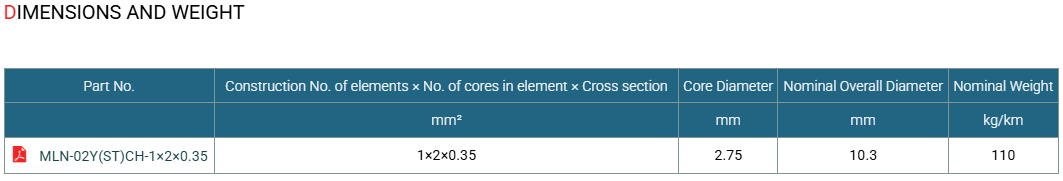

Mechanical and Thermal Properties
Bending Radius for Fixed Installations : 10×OD
Temperature Range : -30℃ ~ +80℃
