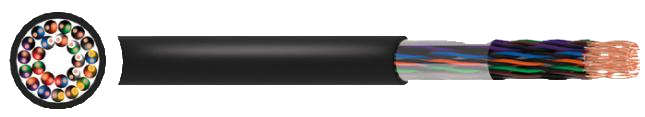

Cat 5E 25 Pair U/UTP PE Duct Grade Cable
gh performance 25 pair backbone cable suitable for outdoor use (in a duct).
APPLICATION gh performance 25 pair backbone cable suitable for outdoor use (in a duct). It can be installed in 100Base-T, Gigabit Ethernet, 155 Mbps ATM, TP-PMD audio, multimedia and telephone networks. |
CHARACTERISTICS Temperature Rating Fixed: -20°C to +60°C Minimum Bending Radius Full load: 20 x overall diameter No load: 15 x overall diameter |
CONSTRUCTION
Conductor
Solid copper conductor
Insulation
HDPE (High Density Polyethylene)
Filler
PE (Polyethylene)
Separator
Mylar shield
Sheath
PE (Polyethylene) Core Identification
Pair 1: White/Blue Blue/White
Pair 2: White/Orange Orange/White
Pair 3: White/Green Green/White
Pair 4: ● White/Brown o Brown/White Pair 5: o White/Grey e Grey/White
Pair 6: Red/Blue Blue/Red
Pair 7: Red/Orange Orange/Red
Pair 8: Red/Green Green/Red
Pair 9: Red/Brown Brown/Red
Pair 10: e Red/Grey ● Grey/Red
Pair 11: Black/Blue Blue/Black
Pair 12: e Black/Orange a Orange/Black Pair 13: e Black/Green a Green/Black
Pair 14: Black/Brown Brown/Black Pair 15: e Black/Grey a Grey/Black
Pair 16: ● Yellow/Blue e Blue/Yellow
Pair 17: Yellow/Orange Orange/Yellow
Pair 18: Yellow/Green Green/Yellow
Pair 19: Yellow/Brown Brown/Yellow
Pair 20: Yellow/Grey Grey/Yellow
Pair 21: Purple/Blue Blue/Purple
Pair 22: Purple/Orange Orange/Purple
Pair 23: Purple/Green Green/Purple
Pair 24: Purple/Brown Brown/Purple
Pair 25: Purple/Grey Grey/Purple

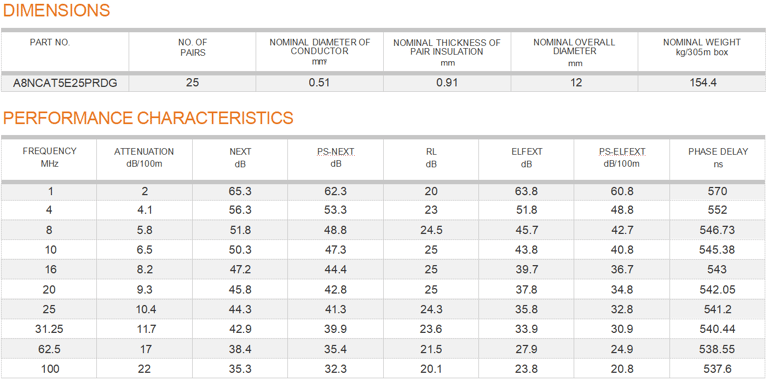

Sheath Colour
● Black
