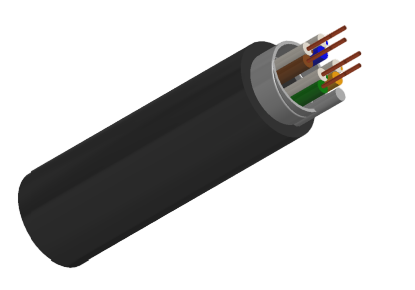

Cat 5e F/UTP 24AWG
Cable
Applications
These Cat5e F/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz.
Standards
EN 50288
ISO 11801
IEC 61156-5
IEC 60332-1
IEC 60754-1/2
IEC 61034

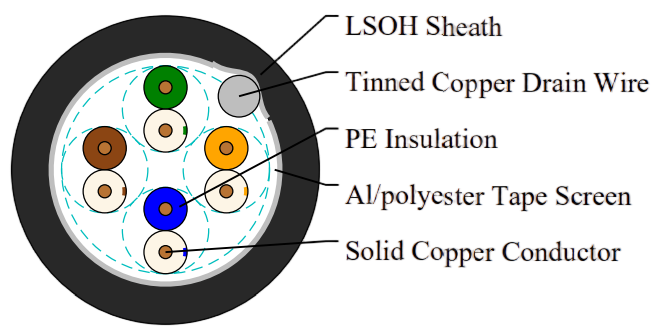

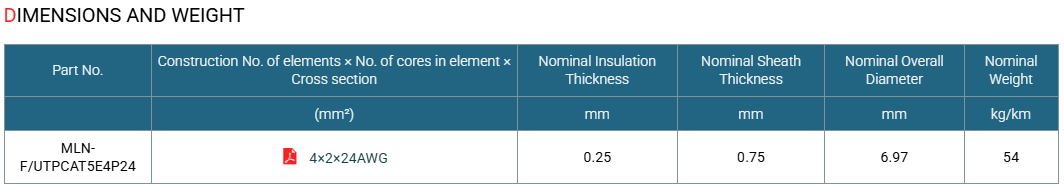

Construction
Conductors | Solid bare copper conductor. |
Insulation | PE. |
Twinning | Two coloured insulated conductors twisted together to form a pair. |
Overall Screen | Al/polyester tape. |
Drain Wire | Tinned copper wire. |
Outer Sheath | LSOH. |
Core Identification
Pair 1 | White/Blue, Blue |
Pair 2 | White/Orange, Orange |
Pair 3 | White/Green, Green |
Pair 4 | White/Brown, Brown |
Electrical Properties
Maximum Loop Resistance | Ω/km | 190 |
|---|---|---|
Maximum Resistance Unbalance |
| 2% |
Minimum Insulation Resistance | 1000 | |
Nominal Capacitance @800Hz | nF/km | 48 |
Maximum Capacitance Unbalance (pair to ground) | pF/km | 1500 |
Characteristic Impedance @1-100MHz | Ω | 100 ± 15 |
Nominal Velocity of Propagation |
| ca. 67% |
Maximum Propagation Delay | ns/100 m | 535 |
Maximum Delay Skew | ns/100 m | 20 |
Maximum Transfer Impedance @1MHz | mΩ /m | 50 |
Maximum Transfer Impedance @10MHz | mΩ /m | 100 |
Maximum Transfer Impedance @30MHz | mΩ /m | 200 |
Minimum Coupling Attenuation | dB | 55 |
Mechanical and Thermal Properties
Bending Radius : 8×OD (during installation); 4×OD (fixed installed)
Temperature Range : -20℃ ~ +60℃
