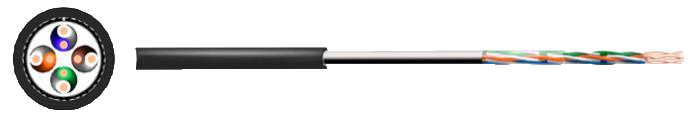

Cat 5E F/UTP PE Cable
A 4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission.
APPLICATION A 4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 5E supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). |
CHARACTERISTICS Temperature Rating Fixed: -20°C to +50°C Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 8 x overall diameter |
CONSTRUCTION
Conductor
Class 1 solid copper conductor
Insulation
HDPE (High Density Polyethylene)
Drain Wire
Tinned Copper
Screen
Aluminium foil
Sheath
PE (Polyethylene)
Core Identification
Pair 1: ● Blue o White/Blue
Pair 2: Orange White/Orange
Pair 3: ● Green ● White/Green
Pair 4: Brown White/Brown
Sheath Colour
● Black
