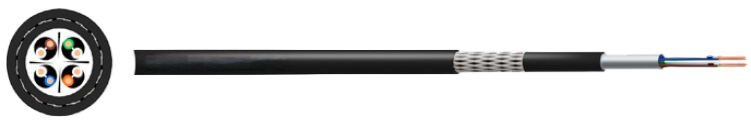

Cat 5E PE F/UTP GSWB LSZH Cable
This cable is used for horizontal wiring in a local area network (LAN) in areas requiring mechanical protection.
APPLICATION This cable is used for horizontal wiring in a local area network (LAN) in areas requiring mechanical protection. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. |
CHARACTERISTICS Temperature Rating Fixed: -20°C to +60°C Minimum Bending Radius Fixed: 6 x overall diameter |
CONSTRUCTION
Conductor
Class 1 solid copper conductor
Insulation
HDPE (High Density Polyethylene)
Drain Wire
Tinned copper
Screen
Aluminium Foil
Bedding
LSZH (Low Smoke Zero Halogen)
Braiding
GSWB (Galvanised Steel Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: ● Blue o White/Blue
Pair 2: Orange White/Orange
Pair 3: ● Green ● White/Green
Pair 4: ● Brown ● White/Brown
Sheath Colour
● Black
