Cat 5e SF/UTP 24AWG 4P/8P

Cable

Applications

These Cat5e SF/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz.

Standards

EN 50173-1

EN 50288-2-1

ISO/IEC 11801

IEC 61156-5

TIA/EIA-568-B.2

IEC 60332-1 (for PVC & LSOH & FRLSOH Sheath)

IEC 60754-2 (for LSOH & FRLSOH Sheath)

IEC 61034 (for LSOH & FRLSOH Sheath)

IEC 60332-3-24 (for FRLSOH Sheath)

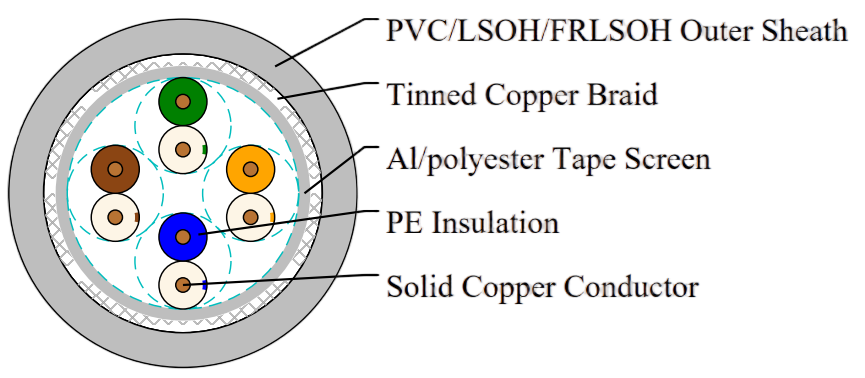

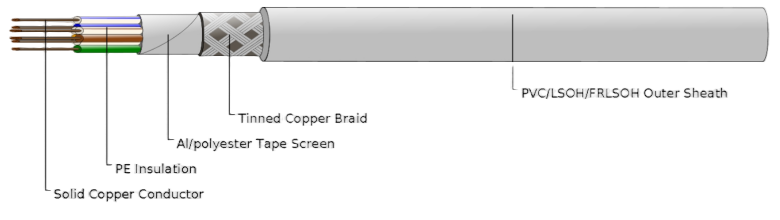

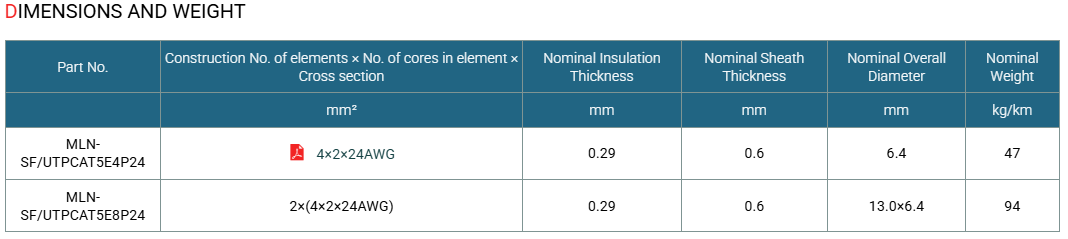

Construction

Conductors	Bare copper conductor.
Insulation	PE.
Twinning	Two coloured insulated conductors twisted together to form a pair.
Overall Screen1	Al/polyester tape.
Overall Screen2	Tinned copper wire braid.
Outer Sheath	PVC/LSOH/FRLSOH.

Core Identification

Pair 1	White/Blue, Blue
Pair 2	White/Orange, Orange
Pair 3	White/Green, Green
Pair 4	White/Brown, Brown

Electrical Properties

Maximum Loop Resistance	Ω/km	190
Maximum Resistance Unbalance		2%
Minimum Insulation Resistance	MΩ.km	1000
Nominal Capacitance @800Hz	nF/km	48
Maximum Capacitance Unbalance (pair to ground)	pF/km	1500
Characteristic Impedance @1-100MHz	Ω	100 ± 15
Nominal Velocity of Propagation		ca. 67%
Maximum Propagation Delay	ns/100 m	535
Maximum Delay Skew	ns/100 m	20
Maximum Transfer Impedance @1MHz	mΩ /m	20
Maximum Transfer Impedance @10MHz	mΩ /m	20
Maximum Transfer Impedance @30MHz	mΩ /m	30
Maximum Transfer Impedance @100MHz	mΩ /m	60
Minimum Coupling Attenuation	dB	75
