Cat 5E U/UTP SWA LSZH Cable
An armoured multi-pair high performance cable that consists of twisted pairs, used mainly for data transmission.
APPLICATION An armoured multi-pair high performance cable that consists of twisted pairs, used mainly for data transmission. Category 5E cables support a frequency range of up to 100MHz and designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. |
CHARACTERISTICS Temperature Rating -20°C to +60°C Minimum Bending Radius Fixed: 8 x overall diameter |

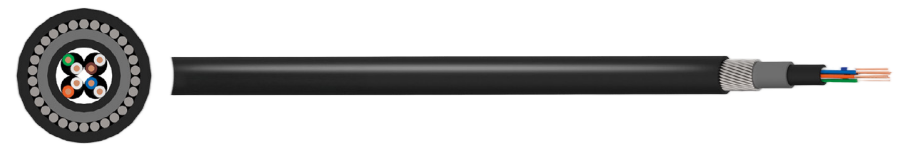

CONSTRUCTION
Conductor
Class 1 solid copper conductor
Insulation
HDPE (High Density Polyethylene)
Inner Sheath 1
LSZH (Low Smoke Zero Halogen)
Inner Sheath 2
LSZH (Low Smoke Zero Halogen)
Armour
SWA (Steel Wire Armour)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: ● Blue o White/Blue
Pair 2: Orange White/Orange
Pair 3: ● Green ● White/Green
Pair 4: Brown White/Brown
Sheath Colour
● Black
