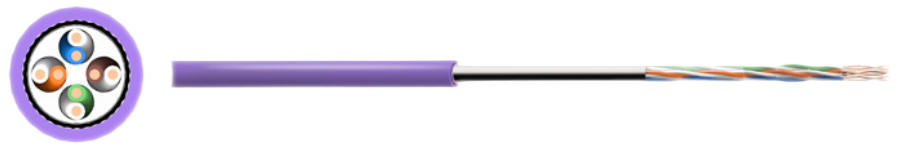

Cat 6 F/UTP LSZH Cable
Category 6 supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).
APPLICATION Category 6 supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). |
CHARACTERISTICS Minimum Bending Radius 8 x overall diameter |
CONSTRUCTION
Conductor
Solid bare copper conductor
Insulation
HDPE (High Density Polyethylene)
Screen
Mylar + Aluminium foil/Mylar
Drain Wire
Tinned copper
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: ● Blue ● White/Blue
Pair 2: Orange White/Orange
Pair 3: ● Green ● White/Green
Pair 4: Brown White/Brown
Sheath Colour
● Violet
Other colours available upon request
