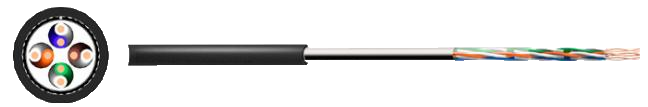

Cat 6 F/UTP PE External Cable
A multi-pair performance cable that consists of twisted pair conductors, used mainly for data transmission.
APPLICATION A multi-pair performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 6 is recommended for all new installations, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). |
CHARACTERISTICS Temperature Rating -20°C to +60°C Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 8 x overall diameter |
CONSTRUCTION
Conductor
Class 1 solid copper conductor
Insulation
HDPE (High Density Polyethylene)
Screen
Aluminium foil
Sheath
PE (Polyethylene)
Core Identification
Pair 1: Blue White/Blue
Pair 2: Orange White/Orange
Pair 3: Green White/Green
Pair 4: Brown White/Brown
Sheath Colour
● Black
Note
Direct-burial version also available
