Cat 6 SF/UTP 24AWG 4P/8P

Cable

Applications

These Cat6 SF/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz.

Standards

EN 50288

ISO 11801

IEC 61156-5

IEC 60332-1

IEC 60754-1/2

IEC 61034

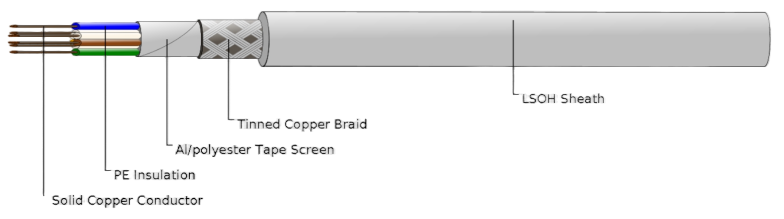

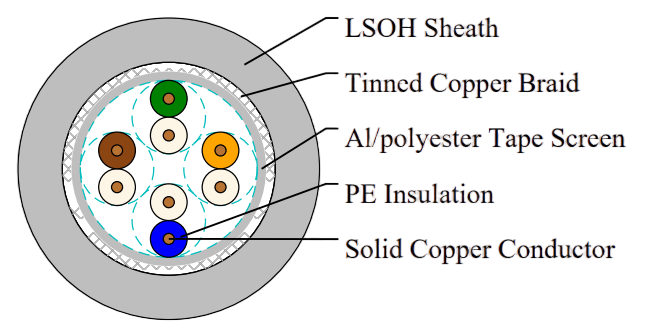

Construction

Central Cross

Conductors : Solid bare copper conductor.

Insulation : Foam skin PE.

Twinning : Two coloured insulated conductors twisted together to form a pair.

Overall Screen1 : Al/polyester tape.

Overall screen2 : Tinned copper wire braid.

Outer Sheath : Polyolefin.

Core Identification

Pair 1	White, Blue
Pair 2	White Orange
Pair 3	White, Green
Pair 4	White, Brown

Electrical Properties

Minimum Insulation Resistance	MΩ.km	1000
Mutual Capacitance	nF/km	56
Characteristic Impedance @1-100MHz	Ω	100 ± 15
Nominal Velocity of Propagation	%	67
Maximum Propagation Delay	ns/100 m	537.6
Maximum Delay Skew	ns/100 m	45
Coupling Attenuation @30MHz	dB	75
