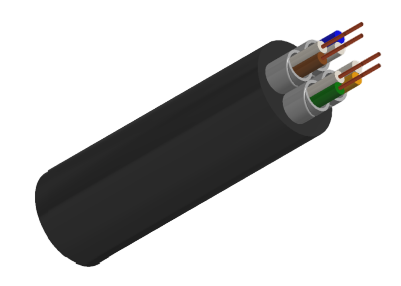

Cat 6 U/FTP 23AWG

Cable

Applications

These Cat6 U/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz.

Standards

EN 50288

ISO 11801

IEC 61156-5

IEC 60332-1

IEC 60754-1/2

IEC 61034

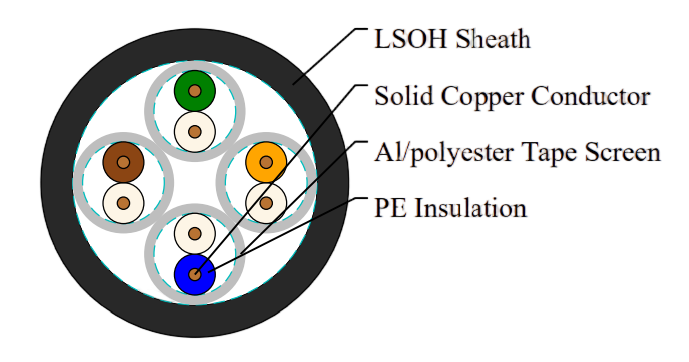

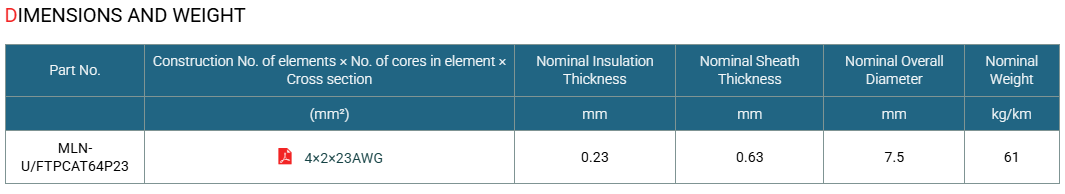

Construction

Conductors	Solid bare copper conductor.
Insulation	PE.
Twinning	Two coloured insulated conductors twisted together to form a pair.
Individual Screen	Al/polyester tape.
Outer Sheath	LSOH.

Core Identification

Pair 1	White, Blue
Pair 2	White Orange
Pair 3	White, Green
Pair 4	White, Brown

Electrical Properties

Maximum Loop Resistance	Ω/km	145
Maximum Resistance Unbalance		2%
Minimum Insulation Resistance	MΩ.km	1000
Nominal Capacitance @800Hz	nF/km	45
Maximum Capacitance Unbalance (pair to ground)	pF/km	800
Characteristic Impedance @1-100MHz	Ω	100 ± 5
Nominal Velocity of Propagation		0.75c
Maximum Propagation Delay	ns/100 m	500
Maximum Delay Skew	ns/100 m	20
Maximum Transfer Impedance @1MHz	mΩ /m	50
Maximum Transfer Impedance @10MHz	mΩ /m	100
Maximum Transfer Impedance @30MHz	mΩ /m	200
Minimum Coupling Attenuation	dB	55
