Cat 6A U/FTP LSZH Cable
A very high performance data cable designed for transmission speeds of up to 10GB per second.
APPLICATION A very high performance data cable designed for transmission speeds of up to 10GB per second. These cables allow the use of protocols supported by class EA for the implementation of 10G Base-T. Cat 6A cables support frequency ranges up to 500MHz compatible with PoE & PoE+. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. |
CHARACTERISTICS Temperature Rating Fixed: -20°C to +60°C Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 8 x overall diameter |

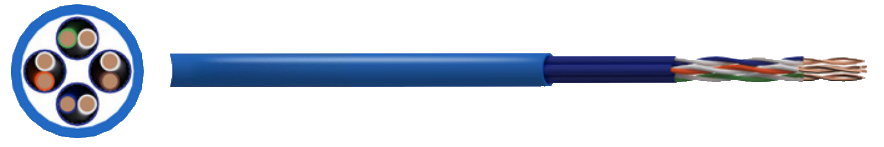

CONSTRUCTION
Conductor
Class 1 solid copper conductor
Insulation
HDPE (High Density Polyethylene)
Screen
Al/PET (Aluminium/Polyester tape)
Drain Wire
Tinned copper wire of 26AWG
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: ● Blue o White/Blue
Pair 2: Orange White/Orange
Pair 3: ● Green ● White/Green
Pair 4: Brown White/Brown
Sheath Colour
● Blue
