Cat 7 S/FTP 4 Pair LSZH Cable
Data cable for high bandwidth, high speed applications. 10 Gigabit Ethernet over 100m.
APPLICATION Data cable for high bandwidth, high speed applications.10 Gigabit Ethernet over 100m. Individual and overall screening to meet strict Crosstalk requirements.Backwards compatible with Cat 5e and Cat 6. |
CHARACTERISTICS Temperature Rating -20 to +70 °C Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 8 x overall diameter |

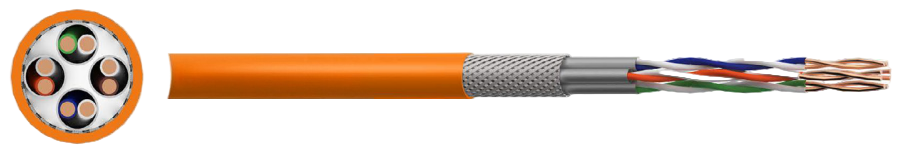

CONSTRUCTION
Conductor
Bare copper conductor
Insulation
Foam-skin Polyethylene (PE)
Individual Screen
Aluminium/Mylar Tape
Drain Wire
Tinned copper
Outer Screen
Tinned copper wire braid (TCWB)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: ● Blue ● White/Blue
Pair 2: Orange White/Orange
Pair 3: ● Green ● White/Green
Pair 4: Brown White/Brown
