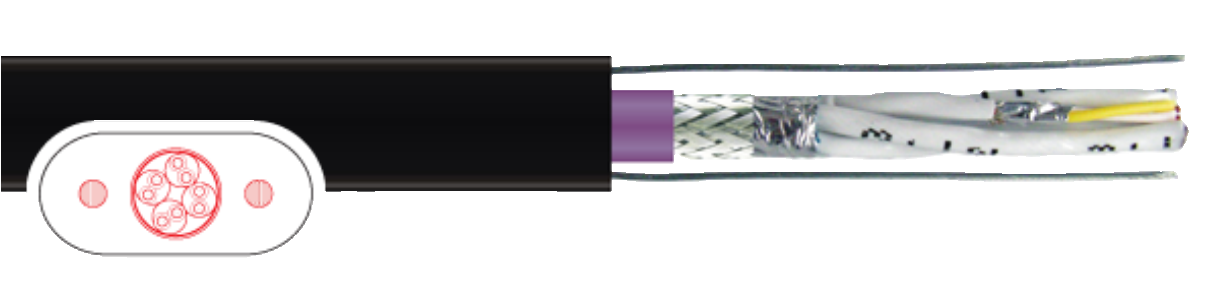

CAT.7 Aufzugleitung 4 X 2 X 0.25 (AWG24/7) PVC Data Cable with Steel Supports
Elevator Communication Cable for PC Networking, Compliant with CAT.7 Standards, Suitable for Dry and Humid Rooms
$10.00
Structure & Specifications | |
conductor material conductor class core insulation core diameter core identification stranding shield element sheath material element sheath colour overall stranding shield inner sheath material outer sheath | bare copper strand acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5 special polymer approx. 1,35 mm white, yellow 2 cores twisted to a pair plastic clad aluminium foil combined with tinned copper wrapping special thermoplastic compound white with black numerals 1-4 4 elements stranded with fillers plastic clad al. foil combined with tinned copper braid special PVC, violet special PVC, black |
rated voltage 30 V testing voltage c/c 1 kV - c/s 0,5 kV conductor resistance ≤ 95 Ω / km insulation resistance ≥ 500 MΩ x km capacity nom. 43 pF / m characteristic impedance 100 ± 5 Ω transfer rate CAT.7 acc.to DIN EN 50288-4-2 attenuation 27,8 dB / 100 m at 100 MHz min. bending radius fixed 10 x d min. bending radius moved 15 x d speed max. 10,0 m / s suspension height max. 80 m tensile strength max. 1.500 N operat. temp. moved min/max -20 °C / +60 °C burning behavior self-extinguishing and flame retardant acc. to IEC 60332-2-1 | |
Application |
data cable for communication with a personal computer in the elevator car or for networ- king purposes according to CAT.7 specifications. Suitable in dry and humid rooms. |
Special Features |
• very low attenuation • doubled pair- and overall shield • high crosstalk attenuation |
Remarks |
• conform to RoHS • due to the comparatively bigger cross section the transmission distance is increased • Available accessory you'll find on pages 15.35.XX |
