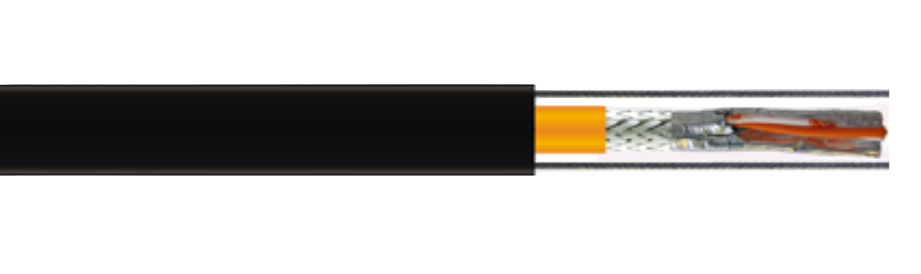

CAT.7 Aufzugleitung - H-LC 4 X 2 X 0.14 (AWG26/7) Halogen-Free Elevator Data Cable
High-Performance Shielded Data Cable with Steel Supporting Elements for PC Communication and Networking in Elevators, Suitable for Dry and Humid Rooms
$10.00
Structure & Specifications | ||

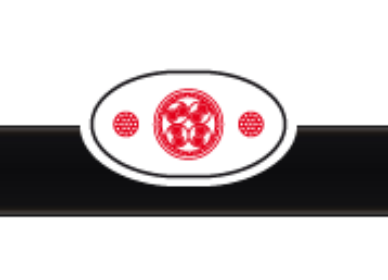

conductor material core insulation core identification stranding shield overall stranding shield protection against contact inner sheath material supporting element outer sheath printing rated voltage testing voltage conductor resistance capacity characteristic impedance transfer rate transfer size attenuation signal propagation delay min. bending radius fixed min. bending radius moved speed suspension height tensile strength | bare copper strand, 7x0,16 mm PE WHBU-BU, WHOG-OG, WHGN-GM, WHBN-BN 2 cores twisted to a pair each pair with plastic clad aluminium foil 4 pairs stranded in layer tinned copper braid, coverage approx. 80 % polyester fleece halogen-free compound, orange 2 steel supporting elements in the outer sheath halogen-free compound, black yes 30 V 0,5 kV max. 143 Ω / km < 52 nF / km 90 ± 12 Ω ( 4-100 MHz) CAT.7 acc.to DIN EN 50288-4-2 lossless max. 65m acc. to IEC 61156-6 approx. 4,5 ns / m 8 x d 10 x d max. 6,3 m / s max. 120 m max. 1.170 N | |
operat. temp. moved min/max -5 °C / +70 °C | ||
halogen free burning behavior resistant to oil | yes acc. to IEC 60332-2-1 acc. to IEC 60811-404 | |
Application |
data cable for communication with a personal computer in the elevator car or for networ- king purposes according to CAT.7 specifications. |
Special Features |
• low attenuation • high crosstalk attenuation |
Remarks |
• conform to RoHS • Available accessory you'll find on pages 15.35.XX |
