Type 240 Mining Cable – AS/NZS 1802, 1.1kV–11kV
Triple Pilot Composite Screened Cable for Reliable Long-Distance Mining Feeder Connections
$1.00
Parameter | Description |
|---|---|
Cable Type | Composite Screened Mining Cable |
Applicable Standards | AS/NZS 1802 |
Rated Voltage | 1.1/1.1 kV to 11/11 kV |
Conductor Material | Tinned copper (three cores plus three pilot conductors) |
Insulation | EPR (R-EP-90) |
Insulation Tape | Textile for 1.1/1.1 kV; Semiconductive screen for ≥3.3 kV |
Screen | Composite screen (tinned annealed copper wire + polyester yarn) |
Outer Sheath | Heavy duty HD-85-PCP |
Maximum Operating Temperature | +90 °C |
Minimum Operating Temperature | -25 °C |
Flexibility | Flexible |
Chemical Resistance | Very good — suitable for frequent chemical exposure |
Mechanical Impact Resistance | Heavy duty |
Water Resistance | Suitable for immersion and temporary coverage |
UV and Weather Resistance | Suitable for direct solar radiation and weather exposure |

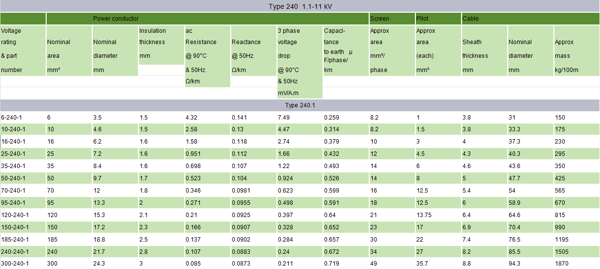

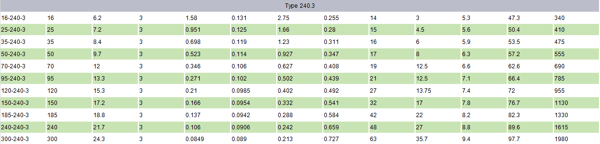

Type 240.3

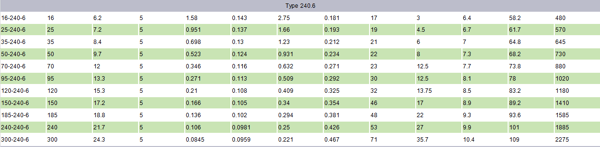

Type 240.6

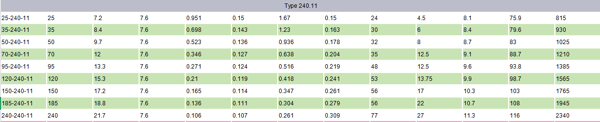

Type 240.11
Product Overview
Type 240 is a composite screened cable designed to meet AS/NZS 1802 standards. It is widely used in mining applications with voltage ratings from 1.1/1.1 kV to 11/11 kV. The cable serves as a reliable feeder connection between transformers and gate-end boxes or similar equipment, continuous miners, and pumps. Featuring three pilot conductors, it supports long cable runs without compromising the pilot control protection system resistance, ensuring superior performance. For applications requiring higher flexibility, Type 241 cables are recommended.
Product Features
Standards Compliant: Fully complies with AS/NZS 1802 standards.
Triple Pilot Conductors: Three separate pilot cores enhance control system integrity over long runs.

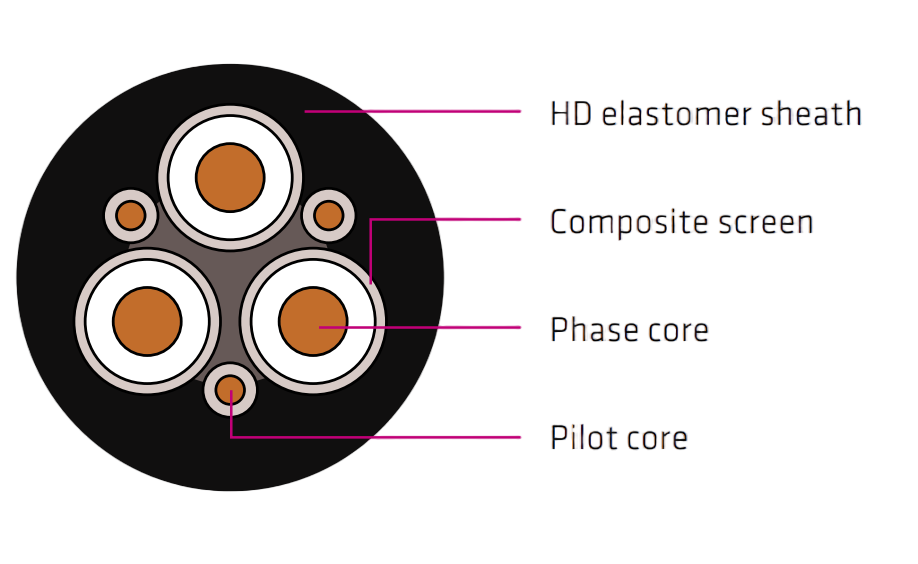

Durable Construction: Composite screened cores and heavy-duty HD elastomer sheath provide excellent resistance to mechanical impact, chemicals, water exposure, and UV/weathering.
Flexible Design: Suitable for installation in free air, ducts, and on mobile mining equipment.
Fire Retardant: Meets flame and fire retardant behavior standards.
Application Areas
Ideal for feeder cable applications in mining environments, including connections between transformers and gate-end boxes, continuous miner cables, and feeder cables for pumps and similar equipment. Suitable for long cable runs and power supply to mobile mining machinery.
Installation and Maintenance
Cable is suitable for installation in free air, ducts, and on mobile equipment. Follow AS/NZS installation guidelines. Routine inspections are recommended to maintain sheath integrity and prevent mechanical damage.
After-sales Support
Comprehensive technical support, warranty services, and rapid field response are available for any issues related to Type 240 mining cables.
Contact Us
Contact our sales or technical team for quotes, detailed datasheets, and customized solutions tailored to your mining operations.
