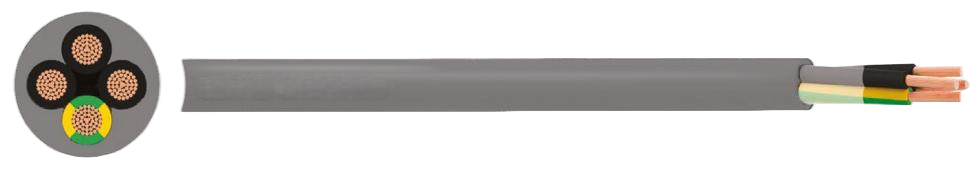

Control PUR-JZ Cable
flexible PUR sheathed cable for tooling machinery, production lines, and flexible applications with free movement and low tensile load.
APPLICATION Flexible PUR sheathed cable for tooling machinery, production lines, and flexible applications with free movement and low tensile load. Suitable for dry, ambient and wet environments. They are resistant to oil, many chemicals, abrasion, and mechanical stress. These cables can be used in outdoor applications in fixed installations. |
CHARACTERISTICS Voltage Rating 300/500V Test Voltage 4kV Temperature Rating Fixed: -40°C to +80°C Flexed: -5°C to +70°C Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 10 x overall diameter |
CONSTRUCTION
Conductor
Class 5 flexible plain copper wires
Insulation
PVC (Polyvinyl Chloride)
Separator
Non-woven polyester tape
Sheath
PUR (Polyurethane)
Core Identification
Black with white number
From 3 cores: Black with white number + Green/Yellow
Sheath Colour
● Grey
