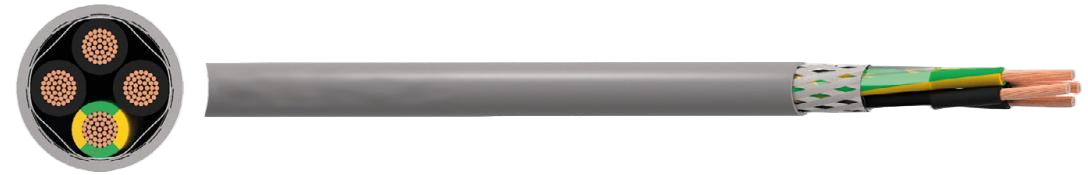

Control PUR-JZ Screened Cable
These Screened Polyurethane cables are highly resistant against wear and tear.
APPLICATION These Screened Polyurethane cables are highly resistant against wear and tear. The oil and coolant resistance allows application in industrial environments, machine building,engineering or steel works. This cable is suitable for medium mechanical stress without tension load and forced guiding. |
CHARACTERISTICS Voltage Rating Uo/U 300/500V Temperature Rating Fixed: -40ºC to +80ºC Installation: -5ºC to +80ºC Minimum Bending Radius Fixed: 5 x overall diameter Flexed: 10 x overall diameter |
CONSTRUCTION
Conductor
Class 5 flexible stranded bare copper
Insulation
PVC Compound (Polyvinyl Chloride)
Screen
TCWB (Tinned Copper Wire Braid)
Outer Sheath
PUR (Polyurethane)
Core Identification
Black numebered + Green/Yellow
Sheath Colour
Grey
