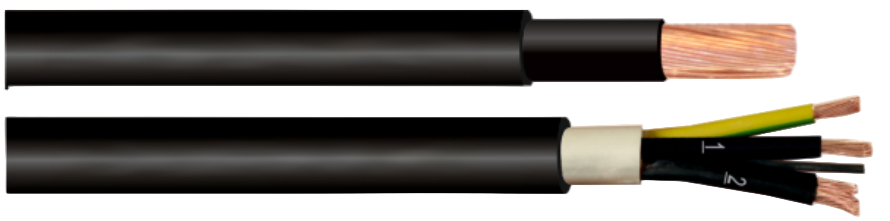

FEICHUN 1KV H – Halogen-Free Power & Control Cable

Durable, Flame-Retardant Cable for Indoor, Outdoor, and Direct Burial Installations

$5.00

Technical data:

Thermal parameters:

Operating temperature:

fixed installation: -40 °C to 80 °C

flexible connections: -5 °C to 80 °C

Electrical parameters:

Operating voltage: U0/U = 0,6/1 kV

Test voltage (50 Hz): 4000 V

Insulation resistance: 20 MΩxkm Mechanical parameters:

Min. bending radius:

flexible connections: 12 x Ø

fixed installation: 6 x Ø

Conductors:

Insulation:

Core identification:

Core arrangement:

Inner sheath:

Outer sheath:

bare copper conductors, multi-stranded class 5

acc. to EN 60228

special halogen-free compound

black, numbered conductors, cables with protective earth conductor marked G (e.g. 7G1,5)

cores twisted together

special halogen-free compound for sections over 2,5 mm2 (single core or paired cables without inner sheath)

special halogen-free compound, self-extinguishing and flame retardant (acc. to EN 60332-1-2, EN 60332-3-24, cat. C); UV resistant, colour: black

Application:FEICHUN 1KV H cables are suitable for fixed installations and for flexible connections in industrial devices, technological lines and machines operating in dry and damp rooms, especially in applications in places with increased fire safety requirements (limited flame propagation). Cables designed also for direct burial in ground. Cables classified according to EN 50575 (CPR).
