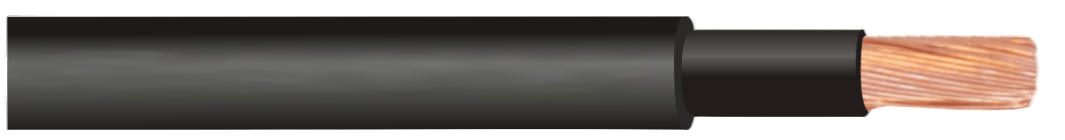

PP-PUR – Flexible Halogen-Free Power Cable 0.6/1 kV
High-Mechanical-Strength Cable for Drag Chains, Trolley Systems, and Outdoor Industrial Use
$1.50
Application:Halogen-free power cable for high mechanical requirements and frequent bending. Especially for use in trolley systems, drag chains on moving parts of machines, conveyor facilities (for travelling speed on cable trolleys up to 240 m/min). Permanent tensile load without supporting element max. 25 N/mm² of dynamic load. Suitable for dry and damp rooms and for outdoor use . Cables classified according toEN 50575 (CPR). |
Technical data:
Thermal parameters:
Operating temperature:
fixed installation: -40 °C to 90 °C
flexible connections: -20 °C to 90 °C
temp. at conductor: 90 °C
Electrical parameters:
Operating voltage: U0/U = 0,6/1 kV
Test voltage 50 Hz: 4000 V
Mechanical parameters:
Min. bending radius:
flexible connections: 6 x Ø
fixed installations: 6 x Ø
Design: | |
Conductor: | bare copper conductors, multi-stranded class 6 acc. to IEC 60228 |
Insulation: | PP |
Core identification: | white with black numerals with or without GNYE; single cores black or GNYE |
Core arrangement: | cores stranded in layers |
Outer sheath: | PUR (EN 60332-1-2, IEC 60332-1-2); colour: black |
