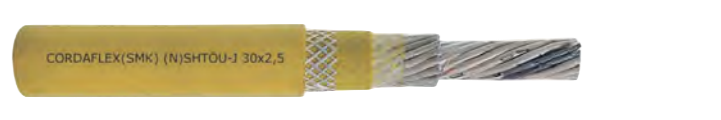

(SMK) (N)SHTOEU Low Voltage Reeling Cable
Flexible Power Solution for Extreme Mechanical Stresses
$6.00
Application
Flexible low voltage reeling cable for application under high and very high mechanical stresses.
Global data
Type designation ：(N)SHTOEU-J/-O
Standard :Based on DIN VDE 0250-814
Design features
Conductor:Electrolytic copper tinned, very finely stranded class FS
Special compound based on high-quality EPR (min. 3GI3); improved mechanical and electrical characteristics.
Core identification:Best identification as a result of light colored insulation with numbers printed in black for power and control cables, earth conductor green-yellow colored.
High grade special compound based on PCP, color: yellow;
- Anti-torsion braid:
Reinforced braid made of polyester threads, in a vulcanized bond between the sheaths, resulting in a high strength of the sheath system;
- PROTOFIRM Special - Outer sheath:
A sheath system with a unique combination of flexibility and robustness has been achieved
through the use of this structure. Abrasion and tear resistant special rubber compound based on PCP, color: yellow.

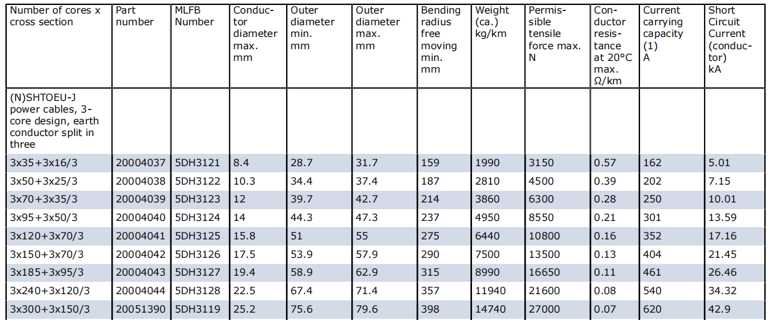

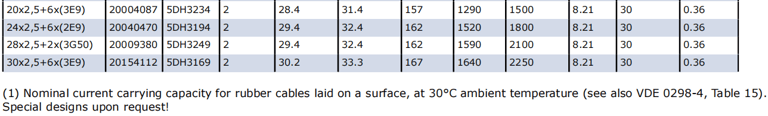

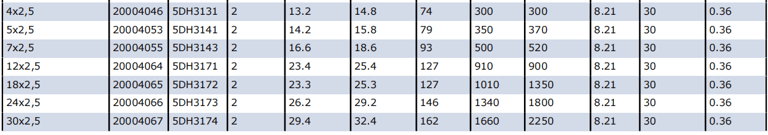

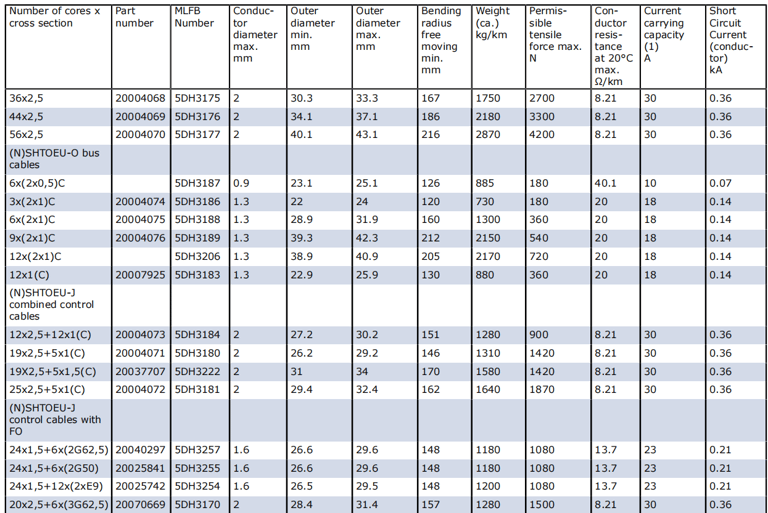

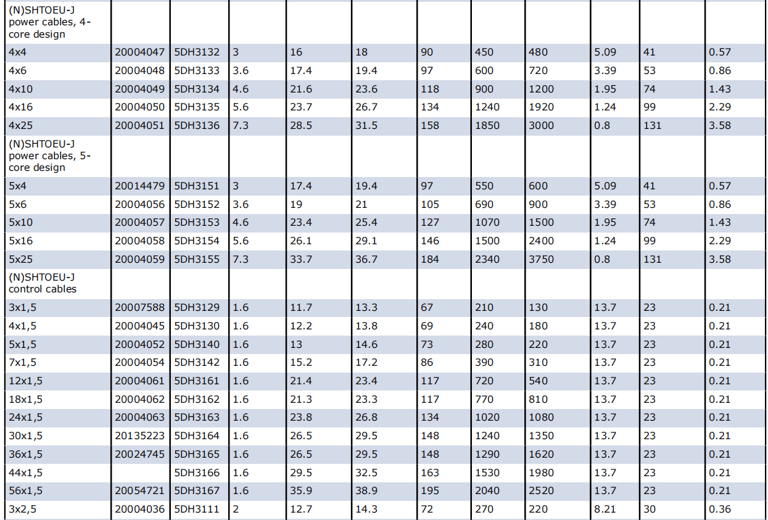

Marking CORDAFLEX (SMK) (N)SHTOEU -J/-O (number of cores) x (cross section)+VDE Reg.-Nr.
Electrical parameters
Rated voltage :0.6/1 kV (600/1000V)
Max. permissible operating voltage AC: 0.7/1.2 kV
Max. permissible operating voltage DC:0.9/1.8 kV
AC Test Voltage :3.5 kV (5 Min.)
Industrial Ethernet.
Alternatively: Fibre optics for transmitting all bus protocols.
Current Carrying Capacity description Acc. to DIN VDE 0298-4
Chemical parameters
Resistance to oil Acc. to DIN EN 60811-404; DIN VDE 0473-811-404, paragraph 10
Weather resistance Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture.
Water resistance Given and verified in long-term tests
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -35 °C ; max +80 °C
Mechanical parameters
Max. tensile load on the conductor 30 N/mm²
Torsional stress ± 50 °/m
Min. bending radius Acc. to DIN VDE 0298 part 3
Min. distance with S-type directional changes 20 X D
Travel speed - Gantry (reeling operation): no restriction. It is recommended to consult the manufacturer for
speeds beyond 240m/min;
- Trolley (festoon operation): up to 240 m/min.
