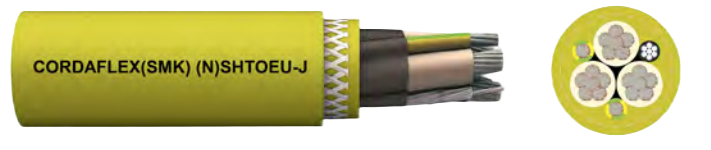

(SMK) (N)SHTOEU Low Voltage Reeling Cable for E-RTGs
Flexible Power and Data Transmission Cable for Heavy-Duty Reeling on Electrified Rubber Tyred Gantry Cranes
$25.00
Application
Flexible low voltage reeling cable for power supply (also with integrated fiber optics), suitable for application under high and very high mechanical stresses. The main application is reeling operation on ERTG's (Electrified Rubber Tyred Gantry cranes) .

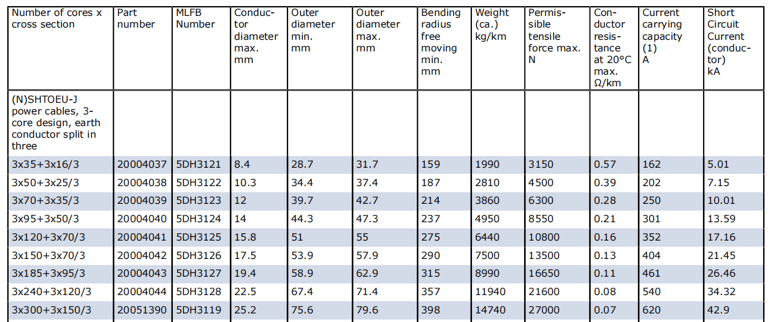

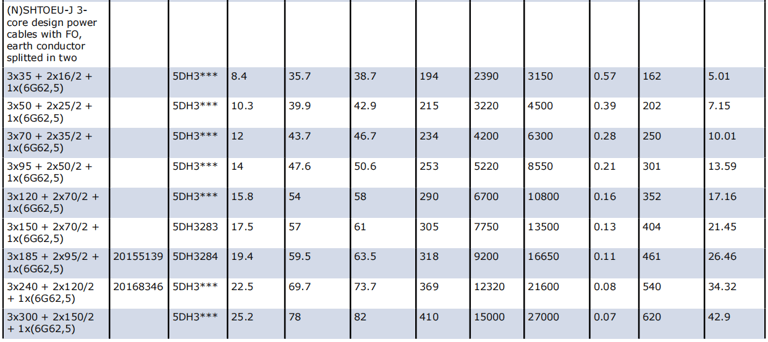

Global data
Type designation (N)SHTOEU-J/-O
Standard Based on DIN VDE 0250-814
Electrical parameters
Rated voltage 0.6/1 kV (600/1000V)
Max . permissible operating voltage AC 0.7/1.2 kV
Max . permissible operating voltage DC 0.9/1.8 kV
AC Test Voltage 3.5 kV (5 Min.)
Data transmission Special design with fibre-optics for trouble free data transmission at high data rates.
Current Carrying Capacity description Acc. to DIN VDE 0298-4
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Chemical parameters
Resistance to oil Acc. to DIN EN 60811-404; DIN VDE 0473-811-404, paragraph 10
Weather resistance Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture.
Water resistance Given and verified in long-term tests
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -35 °C ; max +80 °C
Mechanical parameters
Max. tensile load on the conductor 30 N/mm²
Torsional stress ± 50 °/m
Min. bending radius Acc. to DIN VDE 0298 part 3
Min. distance with S-type directional changes 20 X D
Travel speed - Gantry (reeling operation): no restriction. It is recommended to consult the manufacturer for
speeds beyond 240m/min;
- Trolley (festoon operation): up to 240 m/min.
