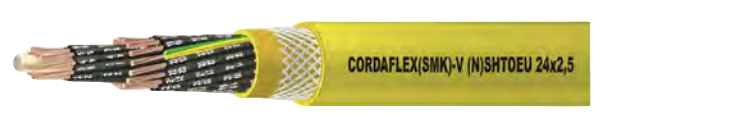

(SMK)-V (N)SHTOEU Low Voltage Cable for Vertical Reeling
High-Performance Flexible Cable for Extreme Stresses in Spreader Reeling Applications
$15.00
Application
Flexible low voltage reeling cable for application under extreme mechanical stresses, specially designed for vertical reeling operation (spreader reeling application).
Global data
Type designation (N)SHTOEU-J/-O
Standard Based on DIN VDE 0250-814
Certifications / Approvals GOST-R
Electrical parameters
Rated voltage 0.6/1 kV (600/1000V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC 0.9/1.8 kV
AC Test Voltage 3.5 kV (5 Min.)
Data transmission With special elements: ASI-Bus, Profibus, CAN-Bus, Industrial Ethernet.
Alternatively: fibre optics for transmitting all bus protocols.
Current Carrying Capacity description Acc. to DIN VDE 0298-4
Chemical parameters
Resistance to oil Acc. to DIN EN 60811-404; DIN VDE 0473-811-404, paragraph 10
Weather resistance Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture
Water resistance Given and verified in long-term tests
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -35 °C ; max +80 °C
Mechanical parameters

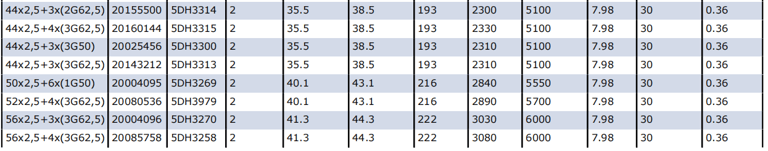

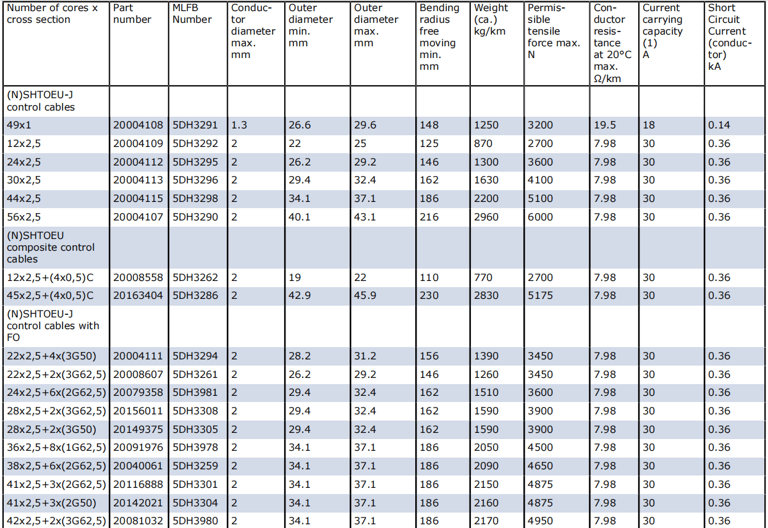

Max. tensile load Increased tensile load through addtional support elements (see table).
Torsional stress ± 50 °/m
Min. bending radius Acc. to DIN VDE 0298 part 3
Min. distance with S-type directional changes 20 X D
Travel speed Hoist (vertical reeling): up to 240 m/min. It is recommended to consult the manufacturer for speeds beyond 240 m/min.
