CORDAFLEX(SMK)-V (N)SHTOEU 0.6/1KV: Heavy-Duty Vertical Reeling Cable for Extreme Hoist and Spreader Applications

Introduction: The Unique Challenge of Vertical Reeling in Australian Port and Mining Operations

Every working day across Australian ports and mining operations, equipment operates at the very edge of mechanical limits. A ship-to-shore (STS) crane suspends a 40-foot container hundreds of metres above the deck. A vertical hoist system raises a load of ore or coal at maximum speed toward an overhead gantry. A mobile spreader system lifts containers vertically with the cable bearing the full weight of the load plus the dynamic forces of acceleration and deceleration.

These vertical reeling operations represent fundamentally different mechanical challenges from horizontal reeling systems. A horizontal gantry crane primarily experiences bending stress as the cable winds and unwinds. A vertical hoist experiences constant tensile loading—the cable must support the full weight of the load continuously. Combined with the bending stress of reeling, the result is mechanical stress that exceeds what standard industrial cables can tolerate.

Consider the physical reality: a cable hoisting a 25-tonne load vertically experiences tensile forces measured in hundreds of kilonewtons. The cable must simultaneously:

• Support tensile loading: The cable must sustain the full weight of the load without stretching or failing

• Withstand reeling stress: The cable winds and unwinds from drums, experiencing thousands of bending cycles

• Resist torsional forces: Emergency stops, load swinging, and dynamic repositioning create twisting forces

• Maintain electrical integrity: The cable must deliver power reliably and, increasingly, support data transmission for automation systems

• Operate in harsh environments: Australian coastal ports expose cables to salt spray and UV. Mining operations expose cables to dust, heat, and rough handling

• Enable high-speed operations: Modern ports demand fast container handling, requiring cables capable of 240+ metres per minute reeling speeds

No standard general-purpose cable can meet all these demands simultaneously. Standard industrial cables engineered for stationary or fixed-route applications fail rapidly under vertical reeling stress. Port operators experience cable failures within 12–24 months—far shorter than expected service life.

Yet for years, many Australian ports and mining operations attempted to meet these extreme demands using barely-adequate cables, accepting frequent failures as an operational cost.

The Evolution Toward Purpose-Built Solutions

Sophisticated port and mining operators have learned that vertical reeling demands purpose-engineered solutions. Cables designed specifically for vertical hoist and spreader applications deliver fundamentally superior performance: longer service life, fewer failures, better operational reliability, and ultimately, lower cost of ownership.

Modern vertical reeling cables represent decades of engineering experience with the specific failure modes and environmental exposures of Australian port and mining operations. They're not merely "stronger" cables—they're engineered specifically to address the unique stresses of vertical reeling applications.

Understanding Vertical Reeling Mechanics: Why Engineering Matters

To appreciate why vertical reeling demands specialised cable design, we need to understand the unique mechanical environment these cables experience.

The Physics of Vertical Hoist Operations

A vertical hoist cable operates under fundamentally different stresses than a horizontal reeling system. When a cable hoists a load vertically:

• Continuous tensile loading: Unlike horizontal systems where tensile forces are minimal, vertical systems apply the full load weight as continuous tensile stress. A 25-tonne load creates approximately 250 kilonewton tensile force throughout the hoisting operation.

• Combined bending and tension: The cable simultaneously experiences tensile loading from supporting the load and bending stress from reeling onto drums. This combined stress is far more severe than either stress alone.

• Dynamic acceleration forces: When the hoist accelerates, the tensile load increases beyond the static load weight. Emergency stops create sudden force spikes that can exceed static load by 50–100%.

• Reeling stress during load motion: Even as the cable supports the load during hoisting, it's simultaneously being wound or unwound from drums, creating bending stress combined with the tensile stress.

Standard industrial cables engineered without considering this combined stress fail in predictable ways: the tensile loading causes the cable to stretch beyond acceptable limits, the combined tension and bending cause core fatigue, or the outer sheath develops stress cracks that allow moisture and contaminants to penetrate.

Why Horizontal Reeling Cables Inadequate for Vertical Applications

Many Australian ports and mining operations attempted to use standard horizontal reeling cables for vertical applications. The logic seemed sound: if it's a reeling cable, it should work for reeling.

But this overlooks a critical difference: horizontal reeling cables are optimised for bending stress with minimal tensile loading. Vertical hoist cables must prioritise tensile strength and combined stress resistance.

The consequences of using horizontally-optimised cables in vertical applications are predictable:

• Excessive cable stretch: The cable elongates beyond acceptable limits during heavy lifts, requiring frequent adjustment of hoist systems

• Core fatigue and conductor breakage: The combination of tensile and bending stress accelerates copper strand fatigue

• Premature sheath failure: Outer sheaths adequate for horizontal applications develop stress cracks under vertical tensile loading

• Reduced operational capability: The cable's stretch and potential instability makes operators nervous about hoisting at maximum speed or maximum load, reducing operational efficiency

Port operators discover these limitations only after deploying inadequate cables and experiencing failures. The cost in downtime and emergency maintenance is substantial.

Why Specialised Vertical Reeling Cables Perform Differently

Cables engineered specifically for vertical reeling applications address every identified limitation. Rather than making compromises, they optimise every element for the unique demands of vertical hoist operations.

The result is transformative: cables that sustain full tensile loading without excessive stretch, maintain flexibility despite high tensile stress, and enable high-speed vertical reeling operations without fear of failure.

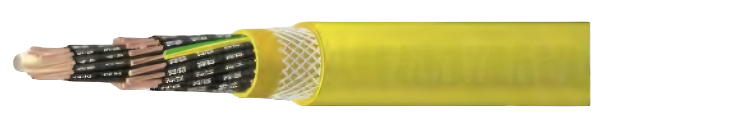

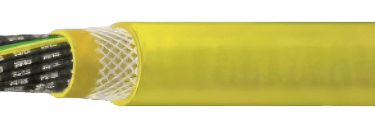

CORDAFLEX(SMK)-V (N)SHTOEU 0.6/1KV: Purpose-Engineered for Extreme Vertical Reeling

CORDAFLEX(SMK)-V represents the pinnacle of vertical reeling cable engineering. This isn't a general-purpose cable adapted for vertical use—it's a purpose-designed system engineered from conception for the extreme mechanical demands of ship-to-shore cranes, container spreaders, mining hoists, and other extreme-duty vertical applications.

The model designation itself encodes technical information:

• CORDAFLEX: Indicating flexible reeling cable design

• (SMK)-V: The "-V" suffix specifically denotes "vertical"—this cable is engineered for vertical reeling applications

• (N)SHTOEU: Specifying compliance with strict European standards for flexible reeling cables

• 0.6/1KV: Rated for 600/1000 volt operation, standard for port and mining equipment

This cable represents the convergence of practical experience from thousands of vertical reeling installations across the world with advanced material science and innovative engineering.

Core Technical Advantages

Electrolytic Bare Copper, Very Finely Stranded Class FS Conductor

The power conductors use pure electrolytic copper in an extremely flexible Class FS (ultra-fine-stranded) configuration. This design is fundamental to the cable's ability to sustain both tensile loading and bending stress simultaneously.

Class FS fine stranding means each individual copper strand is exceptionally thin. These fine strands can accommodate the cable's elongation under tensile loading without developing the brittle fractures that affect heavier stranding. The fine strands also allow the cable to flex smoothly for reeling operation despite the tensile load it's supporting.

In vertical hoist service, this conductor design is transformative. Rather than developing the conductor fatigue that occurs in cables with heavier stranding under combined tension and bending, the Class FS conductor distributes stress across many fine strands. The cable can sustain the 250+ kilonewton tensile loads of serious hoisting operations while simultaneously maintaining flexibility for reeling.

Special Thermoplastic Compound Insulation

The insulation uses a specialised thermoplastic formulation optimised specifically for vertical reeling applications. The thermoplastic compound provides:

• Electrical stability under sustained tensile stress: The insulation doesn't degrade when subjected to continuous tensile loading, maintaining consistent dielectric strength throughout hoisting operations

• Excellent insulation resistance: The material maintains electrical properties despite moisture exposure and environmental stress

• Superior gliding characteristics: The insulation surface minimises friction between conductors and sheaths, reducing stress concentration during cable movement

• Thermal stability: The insulation maintains consistent properties from –35°C (coldest Australian mining sites) to +80°C (hottest port facilities)

• Flexibility maintenance: The thermoplastic compound remains flexible despite tensile stress, preventing the brittleness that affects standard PVC under high tension

For cables that must sustain hundreds of kilonewtons of tensile force while maintaining electrical safety and mechanical flexibility, this specialised thermoplastic insulation represents a fundamental engineering advancement.

Individual Tinned Copper Braid Screening

The screening provides multiple benefits critical for vertical reeling operations:

• Electromagnetic shielding: Protects power conductors from external electromagnetic interference and prevents radiation of electromagnetic fields

• Optimised transfer impedance: Designed for 30 MHz operation, ensuring clean signal transmission for control and data elements

• Coverage specifications: 60% coverage for individual cores and 80% coverage for pairs ensures uniform shielding

• Tinned copper construction: Resists corrosion in harsh port environments, maintaining electrical continuity throughout the cable's operational life

For modern vertical reeling systems that integrate power transmission with real-time monitoring, automated load control, and safety systems, electromagnetic shielding is essential. Poor shielding leads to signal degradation that creates control instability or false safety signals.

Central Aramide Support Element

This is the feature that fundamentally distinguishes vertical reeling cables from standard cables. The central aramide (synthetic fibre used in high-performance applications) support element runs through the cable's centre, providing:

• Significantly increased tensile load capacity: The aramide element sustains a portion of the tensile load, allowing the cable to support heavier loads without excessive elongation

• Reduced cable stretch: By sharing the tensile load with the copper conductors, the aramide support minimises cable elongation under load, maintaining dimensional stability

• Superior breaking load performance: The cable can withstand much higher breaking loads than standard cables, providing greater safety margin

• Maintained flexibility: Despite the added strength, the aramide support element doesn't significantly compromise the cable's flexibility for reeling operations

The aramide support element is what enables vertical reeling cables to sustain tensile loads that would cause standard cables to stretch excessively. For serious hoisting operations—25+ tonne loads, deep-water container handling, mining operations—this central support element is essential.

Multi-Layer Core Arrangement with Precise Color Coding

The cores are arranged in layers (maximum 3 layers) with black insulation and white identification numbers. The earth conductor is distinctively green-yellow. This arrangement and color coding serve critical functions:

• Standardised arrangement: The layered arrangement ensures consistent cable properties and predictable electrical characteristics

• Colour coding: Enables rapid identification of conductors during installation and maintenance, reducing the risk of connection errors

• EMC compliance: The specific arrangement minimises electromagnetic coupling between conductors, supporting clean signal transmission

For complex installations with power, control, monitoring, and safety systems integrated into a single cable, precise core arrangement and color coding are essential for reliable operation.

Advanced PROTOFIRM Special Three-Layer Sheath System

The outer sheath system consists of three distinct layers:

Layer 1: Inner PCP Sheath (Yellow) The inner sheath bonds directly to the insulation, preventing layer separation during tensile stress and mechanical movement. The yellow color provides visual identification.

Layer 2: Reinforced Anti-Torsion Polyester Braid The polyester braid provides multiple functions: it resists the torsional forces that occur during emergency stops and load swinging, it distributes tensile stress across the cable's structure, and it resists bending damage during reeling.

Layer 3: Tough Outer PCP Sheath (Yellow) The outer sheath provides environmental protection and abrasion resistance. The yellow color—distinctive and highly visible—aids in cable identification at busy port and mining sites.

The three-layer approach distributes protective functions: the inner layer maintains structural integrity during stress, the braid resists torsional and bending forces, and the outer layer provides environmental protection. The result is superior durability compared to single-layer designs.

Performance Specifications for Extreme Vertical Reeling

The cable is engineered specifically for the extreme mechanical demands of vertical hoist operations:

Significantly Increased Tensile Load Capacity

The central aramide support element enables the cable to sustain tensile loads far exceeding standard cables. For a typical multi-core cable, this might mean supporting 25–30 tonne loads with acceptable stretch, compared to 15–20 tonne loads for standard cables.

Torsional Stress Rating: ±50°/m

The cable withstands 50 degrees of rotation per metre without internal damage. For vertical reeling systems experiencing torsional stress from load swinging and emergency stops, this specification is essential.

Minimum Bending Radius According to DIN VDE

The cable can navigate standard drum configurations and reeling systems without stress-induced damage, confirmed by rigorous DIN VDE testing standards.

S-Type Directional Change Minimum: 20 × D

For vertical reeling systems with curved cable routing (common in spreader and gantry systems), the cable maintains integrity with larger-radius curves, reducing stress concentration at routing points.

Travel Speed: Up to 240 m/min in Vertical Hoist Reeling

The cable maintains electrical and mechanical integrity at reeling speeds up to 240 metres per minute—matching modern port container handling speeds. At these speeds, cable dynamics are critical; the cable must move smoothly without whipping or excessive tension.

Reversed Bending, Roller Bending, and Torsional Stress Tests: Passed

The cable has been subjected to rigorous testing protocols that simulate real-world vertical reeling conditions. Passed test results confirm genuine suitability for demanding vertical applications.

Optional Data Transmission Elements

Modern vertical reeling systems increasingly require integrated communication and monitoring:

• ASI-Bus: Lightweight protocol for distributed I/O and safety systems

• Profibus: Standard protocol for industrial automation and crane control systems

• CAN-Bus: Widely used for equipment networking and diagnostics

• Industrial Ethernet: High-speed data transmission for real-time monitoring and control

• Fibre optics: Integrated high-speed data transmission immune to electromagnetic interference

These optional elements allow CORDAFLEX(SMK)-V cables to support advanced automation, safety systems, and monitoring capabilities while maintaining the mechanical reliability required for extreme vertical reeling duty.

Real-World Application: Australian Port and Mining Case Study

To understand the genuine operational and financial impact of selecting specialised vertical reeling cables, consider the combined experience of Australian port and mining operations deploying these systems.

The Challenge: Managing Cable Reliability in Extreme Vertical Applications

A major Australian mining operation deployed high-speed hoist systems for ore and coal handling. The vertical hoists operated continuously, lifting 20–25 tonne loads at maximum speed to overhead gantries. A nearby container port operated ship-to-shore cranes with integrated spreader systems for container handling and positioning.

Both operations initially used standard industrial reeling cables selected primarily on cost and voltage rating. The cables experienced recurring failures:

Mining Operation Performance:

• Average cable service life: approximately 14–18 months

• Typical failure modes: cable stretch causing system misalignment, core fatigue from combined tension and bending, outer sheath cracking

• Failure rate: 4–6 cable failures annually on primary hoist systems

• Cost per failure: $6,000–$9,000 (cable replacement plus labour and downtime)

Port Operation Performance:

• Average cable service life: approximately 18–24 months

• Typical failure modes: spreader system instability from cable stretch, core fatigue from dynamic loading, signal transmission degradation

• Failure rate: 6–8 cable failures annually across spreader and spreader control systems

• Cost per failure: $8,000–$12,000 (cable replacement, spreader recalibration, and operational disruption)

Both operations recognised that standard cables were inadequate for their extreme-duty vertical reeling applications.

The Solution: Transition to Purpose-Built Vertical Reeling Cables

In 2022–2023, both the mining and port operations transitioned their critical vertical reeling systems to cables specifically engineered for extreme vertical duty. The mining operation replaced all primary hoist cables on its ore and coal handling systems. The port operation replaced all spreader and vertical control cables on its container handling cranes.

The transition involved capital investment:

• Mining operation: approximately $85,000–$120,000 for replacement cables and installation

• Port operation: approximately $95,000–$135,000 for replacement cables and installation

• Combined investment: approximately $180,000–$255,000

The Results: Reliability, Operational Performance, and Financial Justification

Over the 18-month period following complete implementation (mid-2023 to end of 2024), both operations documented measurable improvements:

Cable Reliability

Mining operation:

• Cable failures decreased from 4–6 annually to 0–1 failure

• Average cable service life extended from 14–18 months to 48+ months

• System misalignment issues from cable stretch eliminated

Port operation:

• Cable failures decreased from 6–8 annually to 1–2 failures

• Average cable service life extended from 18–24 months to 48+ months

• Spreader system instability issues resolved

• Signal transmission problems eliminated

Operational Performance

Mining operation:

• Hoist system reliability improved, enabling more aggressive utilisation of equipment

• Fewer emergency maintenance callouts

• Better operational scheduling and predictability

Port operation:

• Container spreader systems operated more reliably, improving operational efficiency

• Automated spreader control systems became reliably functional

• Faster container handling cycles and improved terminal throughput

Financial Outcome

Combined analysis:

• Total capital investment: approximately $220,000

• Combined annual reduction in cable failure costs: approximately $35,000–$60,000 (reduced replacement frequency and labour)

• Additional operational benefits (improved throughput, better equipment utilisation): approximately $40,000–$80,000 annually

• Total annual benefit: approximately $75,000–$140,000

• Payback period: approximately 18–24 months

Importantly, the payback analysis doesn't account for avoided catastrophic failures (a hoist cable failure under load could cause serious injury or loss of life), eliminated downtime during peak operations, or improved crew confidence in equipment reliability.

Industry Recognition and Ongoing Impact

Based on the demonstrated results, both operations committed to purpose-built vertical reeling cables as standard specification for all critical vertical applications. The positive experience influenced other Australian mining and port operations to evaluate similar transitions.

This combined case study demonstrates that for operations deploying extreme-duty vertical reeling systems, cable selection isn't a commodity decision—it's a strategic infrastructure choice directly affecting operational safety, reliability, and financial performance.

Why Australian Port and Mining Environments Demand Specialised Cable Engineering

Australian ports and mining operations operate in some of the world's most challenging and remote environments. The combination of environmental and operational factors creates accelerated cable degradation conditions.

Coastal Salt Spray and Corrosion

Australian container ports—Sydney, Melbourne, Brisbane, Fremantle—expose equipment to relentless salt spray from the ocean. All exposed metallic surfaces corrode. Electrical connections degrade. Cable sheaths deteriorate.

Standard cables using bare copper conductors and unprotected sheaths experience rapid corrosion. Tinned copper conductors and specially formulated outer sheaths engineered for salt spray exposure resist corrosion far better. A vertical reeling cable that maintains electrical integrity for 4+ years in coastal environments outperforms standard cables that show visible degradation within 12–18 months.

Intense UV Radiation and Temperature Extremes

Australia has some of the world's highest UV levels. Outdoor port facilities and open-pit mining operations expose cables to intense ultraviolet radiation continuously. Standard thermoplastics and rubber compounds become brittle under prolonged UV exposure, developing cracks that expose underlying insulation.

Specialised formulations with UV stabilisers maintain flexibility and integrity despite continuous sun exposure. Temperature extremes—from near-freezing in Tasmania's winter to 45°C+ in inland Australia—challenge cable materials. Specialised compounds maintain consistent properties across this full temperature range.

Mechanical Wear in Remote and Rough Environments

Mining operations often deploy equipment in rough, remote conditions. Cables are dragged across rough ground, compressed by heavy equipment, and subjected to mechanical abuse that would be unthinkable in controlled industrial environments. The outer sheath must resist mechanical wear from this rough handling while remaining flexible enough to support reeling operations.

The three-layer PROTOFIRM sheath system of vertical reeling cables distributes mechanical wear across multiple protective layers, extending service life under conditions that would quickly degrade single-layer designs.

Operational Intensity and Continuous Service

Both mining and port operations demand continuous, high-intensity equipment operation. Cable systems must maintain reliability under 24/7 service, high load cycles, and extreme operating conditions. Standard cables, designed for moderate-intensity service, fail under this continuous stress. Specialised vertical reeling cables engineered for intense, continuous operation maintain reliability under demanding duty cycles.

Common Vertical Reeling Cable Failure Modes and How Specialised Design Prevents Them

Understanding how cables fail in vertical reeling service illuminates why specialised engineering matters.

Excessive Cable Stretch and Elongation

The Problem: Standard cables lack sufficient tensile strength to support heavy vertical loads without unacceptable elongation. A cable hoisting a 25-tonne load might stretch 5–10% under load. This elongation causes:

• Hoist system misalignment (the load position changes as the cable stretches)

• Automated spreader systems becoming inaccurate (positioning errors accumulate)

• Repeated stretching causes permanent elongation (the cable never fully retracts)

• Over time, the cable becomes so elongated that the system won't function properly

How Specialised Design Prevents It: The central aramide support element in vertical reeling cables shares the tensile load with the copper conductors. This dramatically reduces elongation. A cable that would stretch 10% under 25-tonne load with standard design might stretch only 2–3% with the aramide support. This reduced elongation maintains system accuracy and eliminates the progressive elongation that undermines standard cables.

Conductor Fatigue from Combined Tension and Bending

The Problem: Standard cables experience premature conductor fatigue when subjected to simultaneous tensile loading and bending stress. The copper strands develop microscopic breaks at stress concentration points. Over thousands of hoisting cycles, these breaks accumulate. Eventually, the conductor becomes weakened enough that it can't carry full current, the cable overheats, and it fails.

How Specialised Design Prevents It: The Class FS ultra-fine-stranded conductor and the aramide support element distribute stress across the cable's structure. Fine strands can accommodate elongation without fatigue. The aramide support shares the tensile load, reducing stress on the conductors. The result: the cable withstands combined tension and bending stress that would cause standard cables to fail.

Outer Sheath Stress Cracking

The Problem: When cables are subjected to sustained high tensile loading, stress is concentrated in the outer sheath. Cracks develop radially—perpendicular to the cable's length. These cracks allow moisture and contaminants to penetrate, degrading the insulation. Electrical faults develop.

How Specialised Design Prevents It: The reinforced anti-torsion polyester braid layer in the three-layer PROTOFIRM sheath system distributes tensile stress. Rather than concentrating stress in the outer sheath, the braid absorbs and distributes the load across the cable's structure. The result: the sheath maintains integrity despite high tensile stress.

Cable Instability and Whipping at High Speeds

The Problem: At high reeling speeds (200+ metres per minute), cables can develop dynamic instability. The cable oscillates or whips rather than moving smoothly. This dynamic instability creates additional stress on the cable and equipment, potentially causing cable failure or equipment damage.

How Specialised Design Prevents It: Vertical reeling cables engineered with balanced mechanical properties maintain stability even at maximum speeds. The cable moves smoothly without oscillation or whipping, enabling safe operation at the high speeds modern port and mining operations require.

Selecting Vertical Reeling Cables: A Decision Framework for Australian Operations

For mining and port operators evaluating vertical reeling cable systems, several factors deserve consideration:

Assess Your Load and Lift Requirements

Understand your facility's genuine load requirements. What are maximum loads? What are typical loads? How frequently do you operate at maximum load? How quickly do you need to lift loads?

Heavy-duty operations (25+ tonne loads, frequent maximum-load operations, high-speed lifting) require cables engineered specifically for this intensity. Operations with lighter loads might achieve acceptable performance with less specialised designs.

Evaluate Elongation Tolerance

Assess how sensitive your systems are to cable elongation. Automated spreader systems, precision hoisting, or positioning systems become inaccurate if cables stretch excessively. If your operation requires high accuracy, specialised cables with reduced elongation are essential.

Consider Environmental Exposure

Evaluate your specific environmental conditions. Coastal ports experience severe salt-spray exposure. Mining operations experience dust, rough handling, and extreme temperature variation. Select cables engineered specifically for your environment's conditions.

Calculate Total Cost of Ownership

While specialised vertical reeling cables cost 35–45% more than standard cables, total cost of ownership—accounting for extended service life, reduced failure rates, improved operational reliability, and avoided downtime—typically favours specialised cables.

The mining and port operations case study demonstrates payback within 18–24 months. For facilities planning 5–10 year operational lifecycles, cumulative savings are substantial.

Engage with Technical Specialists

Rather than selecting cables based solely on voltage rating and price, engage with suppliers who understand vertical reeling-specific requirements. A supplier relationship with technical expertise provides value beyond the cable itself: load analysis, system design, installation guidance, and ongoing performance monitoring.

Technical Specifications for Extreme Vertical Reeling Operations

When evaluating vertical reeling cables, several specifications deserve careful attention.

The rated voltage of 0.6/1 kV establishes the electrical working envelope for mining and port equipment. This voltage standard aligns with most industrial hoist and crane systems.

The temperature performance range of –35°C to +80°C (fully flexible operation) covers all realistic Australian operating scenarios. The cable maintains consistent properties despite seasonal variation and equipment temperature extremes.

The torsional stress rating of ±50°/m indicates anti-twist capability essential for vertical systems experiencing dynamic loading and emergency stops.

The travel speed capability of 240 m/min confirms suitability for modern high-speed port operations and mining installations. This specification margin ensures the cable handles contemporary lifting speeds without performance degradation.

The central aramide support element fundamentally increases tensile load capacity and reduces elongation—essential for serious vertical lifting operations.

The individual tinned copper braid screening ensures clean signal transmission for integrated monitoring and control systems—increasingly important in modern automated mining and port operations.

The advanced PROTOFIRM three-layer sheath provides environmental protection and resistance to the mechanical and environmental stresses of port and mining operations.

Conclusion: Specialised Vertical Reeling Cables as Essential Port and Mining Infrastructure

The selection of vertical reeling cables represents more than a procurement decision. It's a strategic infrastructure choice affecting operational safety, reliability, and financial performance.

Modern specialised vertical reeling cables—engineered specifically for extreme tensile loading, high-speed reeling, and harsh port and mining environments—enable Australian operations to:

• Hoist heavier loads: The increased tensile capacity enables handling of larger loads

• Hoist faster: The reduced cable stretch and dynamic stability enable high-speed operations

• Operate more reliably: Fewer cable failures mean more consistent equipment availability

• Reduce maintenance costs: Longer cable service life and fewer failures reduce operational costs

• Support automation: Integrated data transmission enables advanced monitoring and control systems

For Australian port and mining operators, the transition from standard industrial cables to specialised vertical reeling systems represents the path toward modern, high-performance equipment infrastructure.

Expert Summary

Why Specialised Vertical Reeling Cables Have Become Essential Infrastructure for Extreme-Duty Australian Port and Mining Operations

After comprehensive analysis of vertical reeling cable performance, operational data from Australian port and mining facilities, and the economics of cable selection for vertical applications, several decisive conclusions emerge:

Specialised Design Directly Addresses Vertical Reeling Failure Modes

Vertical reeling cables engineered specifically for extreme tensile loading, combined tension and bending stress, and high-speed reeling operations consistently outperform standard industrial cables. The design differences—Class FS ultra-fine-stranded conductors, special thermoplastic insulation, central aramide support elements, individual shielding, and advanced PROTOFIRM three-layer sheaths—directly address the unique stresses and requirements of vertical hoist operations.

The Australian mining and port operations case study documents consistent performance improvements: 80–90% reduction in cable failures, extended service life from 14–24 months to 48+ months, and elimination of operational problems caused by cable stretch and degradation.

Central Aramide Support Element Enables Heavy-Load Operations

The central aramide support element is what fundamentally distinguishes vertical reeling cables from standard cables. This element enables the cable to sustain tensile loads (25+ tonnes) that would cause standard cables to stretch excessively and fail. The aramide support shares the tensile load with the copper conductors, dramatically reducing elongation and improving breaking load capacity.

For serious vertical hoisting operations, this single design feature is transformative. It enables operations to lift heavier loads, lift faster, and maintain system accuracy that would be impossible with standard cables.

Environmental Exposure in Australian Conditions Justifies Specialised Materials

Australian ports and mining operations expose cables to extreme environmental conditions: intense salt spray, UV radiation, temperature extremes, and rough handling. Cables engineered for these specific conditions maintain integrity and performance for 4+ years, compared to 2–3 years for standard cables. The material science—tinned conductors, thermoplastic insulation, UV-stabilised formulations, and reinforced outer sheaths—represents genuine engineering advancement specific to Australian environmental challenges.

Tensile Strength and Anti-Torsion Reinforcement Enable High-Speed Operations

Modern mining and port operations demand fast vertical reeling. Cables must move smoothly at 200–240 metres per minute without whipping or instability. Specialised design optimising for both tensile strength and dynamic stability enables this high-speed operation. Standard cables, lacking this optimisation, become dynamically unstable at high speeds, forcing operators to reduce speed and reducing operational efficiency.

Integrated Data Transmission Supports Modern Automation

Vertical reeling systems increasingly require integrated monitoring, safety systems, and automated load control. Integrated data transmission elements (ASI-Bus, Profibus, CAN-Bus, Ethernet, fibre optics) in specialised cables enable advanced automation while maintaining mechanical reliability. Standard cables attempting to combine separate power and communication systems create complexity and multiple failure points.

Economic Justification Is Compelling and Multifaceted

The financial case for specialised vertical reeling cables is clear and multifaceted. While initial cable costs are 35–45% higher than standard cables, total cost of ownership—accounting for extended service life (2–3× longer), dramatically reduced failure rates (80–90% reduction), improved operational capability (heavier loads, faster lifting), and avoided incident costs—clearly favours specialised cables. Payback typically occurs within 18–24 months, with substantial ongoing annual benefits.

For operations planning 5–10 year equipment lifecycles, cumulative financial advantages exceed $400,000–$700,000 per facility.

Supply Chain Maturity Supports Widespread Adoption

Specialised vertical reeling cables are available from multiple suppliers with competitive pricing and rapid delivery. Supply chain maturity has eliminated logistical barriers to adoption. Custom configurations—integrated data transmission, specific load ratings, environment-specific sheaths—are available to support diverse operational requirements.

Operational Safety Is Dramatically Improved

Vertical reeling systems with adequate cable tensile capacity and reduced elongation operate more safely. The risk of sudden cable failure is minimised. The risk of system instability from excessive cable stretch is eliminated. For operations where cable failure could result in serious injury or loss of life, these safety improvements are substantial.

Technology Is Proven and Widely Deployed

Specialised vertical reeling cables have been deployed in extreme-duty port and mining operations across the developed world for more than a decade. The designs are proven, reliable, and well-understood. Operational risks from technological immaturity are negligible.

Recommendation

For Australian port and mining operators deploying vertical hoisting systems for container handling, spreader positioning, or ore/coal hoisting, the selection of specialised vertical reeling cables engineered specifically for extreme tensile loading and high-speed reeling is not optional—it represents best practice for modern infrastructure.

Facilities operating older systems with standard industrial cables should prioritise transition to specialised vertical reeling cables as part of their capital planning. The documented financial returns and operational benefits justify the capital investment.

For new vertical installations, spreader systems, or equipment upgrades, specifying specialised vertical reeling cables from inception is the economically rational and operationally optimal choice. The additional capital investment is recovered within 18–24 months through operational benefits.

The era of attempting to operate extreme-duty vertical hoisting systems with standard industrial cables has ended for professionally managed port and mining operations. Specialised vertical reeling cables—combining Class FS ultra-fine-stranded conductors, thermoplastic insulation, central aramide support elements, individual shielding, and advanced three-layer protective sheaths—represent the infrastructure standard for 21st-century port and mining operations requiring reliable, high-speed vertical material handling.

For Australian port and mining operators seeking competitive advantage through operational excellence and safety leadership, the question is not whether to transition to specialised vertical reeling cables—it's when and how to execute that transition most effectively to maximise operational safety, performance, and financial benefits.

Ready to upgrade your vertical hoisting infrastructure to specialised cables engineered for extreme duty? Contact our Australian port and mining specialists to discuss your specific operational requirements, request detailed technical specifications and load capacity analysis, explore integrated cable configurations matching your automation and safety systems, and develop an infrastructure upgrade strategy aligned with your facility's operational and financial objectives. We're here to help you achieve superior reliability, improved operational capability, and safer mining and port operations.

How to Reach Us

Get in Touch

SiteMap

hongjing.Wang@feichuncables.com

Product Catalogue

Home

Products

News

Contact Us

Reeling Cable

Festoon Cable

Shore Power Cable

Mining Cable

Scan to add us on WeChat
