Crane Cable Selection Guide: How to Choose the Right Cable for Your Application

Introduction: The Hidden Cost of Wrong Cable Selection

Every day across Australian industrial facilities—from the massive container handling cranes at Port Hedland to the bucket excavators operating in Pilbara iron ore mines—cables silently power critical operations. Yet despite their importance, cable selection remains one of the most overlooked decisions in equipment planning.

The consequences of choosing the wrong cable are severe. A single cable failure on a container crane can cost upwards of $50,000 in lost throughput per day. A mining excavator sitting idle while a replacement cable is sourced can halt production worth hundreds of thousands of dollars. Even in manufacturing facilities, an incorrect cable selection means premature failure, expensive unscheduled maintenance, and safety hazards.

This guide walks you through the systematic approach to cable selection, explains the engineering principles that determine whether a cable will thrive or fail in your specific application, and provides practical decision frameworks based on real-world Australian examples.

Why Proper Cable Selection Matters

Before diving into technical specifications, it's worth understanding the true cost of cable failures. Most decision-makers focus on the purchase price of the cable—perhaps comparing a $30,000 cable against a $20,000 alternative and choosing the cheaper option to save 33% on material costs.

However, this analysis ignores the true cost structure. A $20,000 cable that fails every 2-3 years means replacement costs, yes, but also means downtime. The machinery sits idle. Production stops. Workers stand by waiting. Customers face delays. The secondary costs of failure often exceed the cable's purchase price by a factor of 10 or more.

Conversely, a $30,000 cable that operates reliably for 8-10 years represents a much lower total cost of ownership. The yearly cable cost drops to $3,000-$4,000. More importantly, the reliability means your equipment runs when you need it to run.

The decision to invest properly in cable selection is ultimately a decision to invest in operational reliability.

Key Factors to Consider Before Selecting a Cable

Proper cable selection begins with a systematic assessment of your requirements. Before you even look at cable types, you need to understand what stresses your cable will actually experience.

The Electrical Requirements

Start with basic electrical specifications. What voltage does your equipment operate at? Is it 400V three-phase industrial power, or do you need something more specialized? Does your equipment draw relatively light current (say, 20 amps) or heavy current (hundreds of amps)? The voltage rating and current capacity requirements immediately narrow your cable options significantly.

Australian industrial equipment typically operates at 400V three-phase, but mining equipment sometimes uses higher voltages. Port equipment varies widely depending on equipment age and design. Understanding your specific voltage and current requirements is the first non-negotiable step.

The Environmental Stresses

Where will the cable operate? This question often determines more about cable suitability than electrical parameters. A cable operating indoors in a climate-controlled warehouse faces entirely different environmental stresses than a cable operating in a Pilbara mining pit where temperatures swing from near freezing at night to over 55°C during the day.

Australian coastal environments present another distinct challenge. Salt air and salt spray create corrosive conditions that degrade many cable materials. A cable suitable for inland operations might fail within months at a coastal port facility if not properly specified.

Oil and grease exposure is another key environmental factor. Mining equipment and heavy industrial machinery often leak or operate in oily environments. The cable insulation must resist oil degradation, or failure is inevitable.

The Mechanical Stresses

How will the cable move? This is perhaps the most important factor for determining cable type. Will the cable hang stationary from a crane trolley, experiencing only the bending stress as the trolley moves? Or will the cable wind and unwind repeatedly from a reel, experiencing tensile pulling stress?

Will the equipment rotate while operating? Rotating equipment imposes torsional (twisting) stress on the cable. Will the cable bend around tight radiuses, or will bending radiuses be generous? Each of these factors fundamentally changes the cable specification you need.

The Installation Environment

Can the cable be installed in protected conduit, or will it be exposed to the elements? Can you support the cable properly with appropriate spacing of support points, or are space constraints severe? Will the cable be exposed to mechanical damage from equipment movement or sharp edges?

The answers to these questions often determine whether certain cable types are even viable for your application.

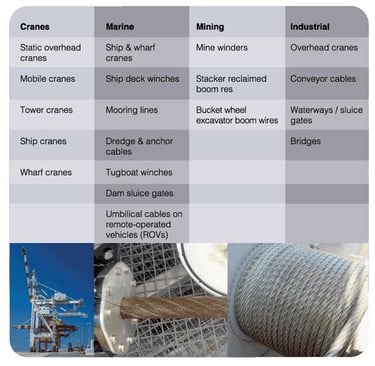

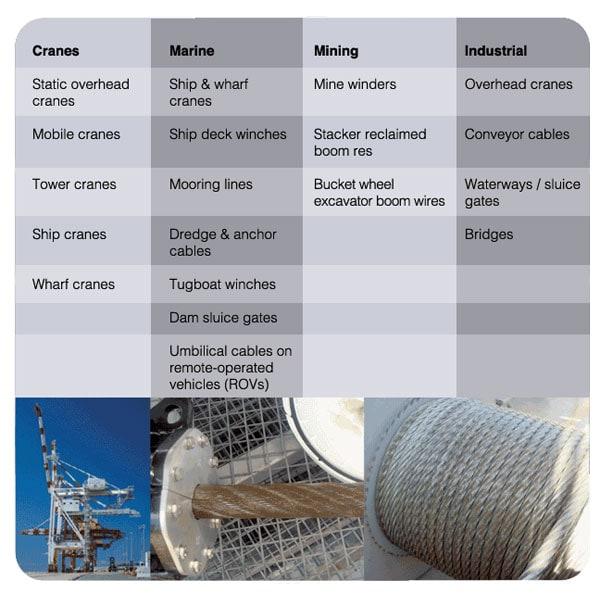

Cable Selection by Application: Real-World Scenarios

Different applications demand different cable engineering. Let's examine three common industrial scenarios, each with distinct requirements and each with a different optimal cable solution.

Port Crane Applications: The Challenge of Extreme Distances and Harsh Environments

Port container handling cranes operate under unique conditions. A ship-to-shore (STS) crane or a rubber-tyred gantry (RTG) crane needs to deliver power across distances sometimes exceeding 150 metres. The cable must withstand salt-air corrosion from the ocean environment, continuous exposure to UV from the bright Australian sun, and the mechanical stress of repeated reeling and unreeling.

The Real-World Challenge: Port Hedland

Imagine a large container handling facility at Port Hedland managing container vessels. The crane must reach across the dock from the quay to position 40+ metres away from the berth. As containers are loaded, the cable unwinds from the drum. As the crane returns, the cable rewinds. This cycle repeats hundreds of times per day, year after year, in an environment where salt spray corrodes exposed metal and UV slowly degrades unprotected materials.

The cable must meet these requirements:

• Deliver power reliably across the 40+ metre distance

• Withstand thousands of wind/unwind cycles per year

• Resist salt-air corrosion without protective coating

• Maintain flexibility despite UV exposure

• Operate in temperature extremes from sea breezes to intense Australian sun

The Solution: High-Performance PUR-Sheathed Reeling Cable

For this application, the optimal cable choice is a high-performance reeling cable with a polyurethane (PUR) outer sheath. The PUR-sheathed design represents the current engineering standard for this specific application.

PUR (polyurethane) sheaths offer several advantages over standard rubber or CPE (chlorinated polyethylene) materials:

• Exceptional UV resistance, critical in Australia's intense sunlight

• Superior salt-air corrosion resistance without coating

• High abrasion resistance, important where cables move across structure

• Excellent oil and chemical resistance

• Outstanding flexibility even when new, maintaining performance through years of cycling

The cable's insulation would typically be EPR (ethylene-propylene rubber) with proper semiconductor layers for electrical field control. The conductor construction would be exceptionally fine-stranded copper, allowing the cable to bend repeatedly without fatigue. For a 40+ metre hanging length, the conductor cross-section would be sized to manage both the equipment load and the cable's own weight.

Typical specifications might include voltage rating of 4-6 kilovolts, conductor sizes from 70 to 185 square millimetres depending on current requirements, maximum conductor temperatures of 90°C, and tensile strength ratings ensuring the cable handles dynamic loading without permanent deformation.

Why This Matters

A properly specified cable for this application costs significantly more than a standard general-purpose cable—perhaps $40,000-$80,000 per kilometre compared to $20,000-$30,000 for general-purpose alternatives. However, the cable operates reliably for 10+ years in this harsh environment. An inferior cable might fail within 2-3 years, requiring costly replacement and risking production downtime.

Mining Equipment: Heavy-Duty Requirements and Extreme Stresses

Mining equipment faces some of the most demanding cable requirements of any industrial application. A large bucket excavator in an open-pit mine, a mobile crusher, or a dragline cable system must deliver power while the equipment moves, rotates, and operates in dust, extreme temperature swings, and harsh mechanical environments.

The Real-World Challenge: Pilbara Iron Ore Mining

Picture a major iron ore operation in the Pilbara. A bucket excavator with a 50-tonne bucket capacity works the ore face. The cable must deliver hundreds of amps to power the excavation motor. As the bucket moves from the ore face to the dump truck, the cable either reels out or bends around support structures. The equipment operates in temperatures ranging from near freezing at dawn to over 55°C at midday. Dust infiltrates everywhere. The cable experiences repeated mechanical stress from the equipment's movement and vibration.

The cable must meet these requirements:

• Deliver power reliably to heavy-duty mining equipment

• Withstand extreme temperature swings (-5°C to +55°C or greater)

• Resist dust infiltration and mechanical damage

• Maintain performance through thousands of operational cycles

• Support equipment rotation with torsional protection

• Meet Australian mining safety standards

The Solution: Type G-GC Industrial-Grade Mining Cable

For this application, the Type G-GC industrial-grade heavy-duty power cable represents an excellent choice. This cable type is specifically engineered for mining applications and has become the standard in the Australian mining industry.

Type G-GC cables feature:

• Bare copper conductors designed for maximum electrical conductivity and durability

• 90°C ethylene-propylene rubber (EPR) insulation providing excellent temperature performance across the -5°C to +55°C operating range

• Black thermosetting chlorinated polyethylene (CPE) jacket specially cured for easy stripping and preparation in field conditions

• Two bare copper grounding conductors with polyester tape separator, covered with green EPR for identification

• A ground check conductor—a critical safety feature in mining—covered with yellow EPR for easy identification

• Voltage rating of 2000V, appropriate for most mobile mining equipment including bucket excavators, mobile crushers, and draglines

• Maximum continuous conductor temperature of 90°C, suitable for sustained mining operations

• Suitability for shallow water submersion when properly terminated, important for mining operations in wet conditions

• MSHA (Mine Safety and Health Administration) certification, indicating compliance with mining safety standards

• Pennsylvania Department of Environmental Protection approval for mining applications

The cable comes in several conductor configurations. A typical mining equipment setup might use 4 AWG (American Wire Gauge) or 2 AWG power conductors, delivering ampacity ratings of 114 amps (4 AWG) or 152 amps (2 AWG) at 30°C ambient temperature.

Construction Design for Mining

The Type G-GC cable's construction specifically addresses mining realities. The reinforced CPE jacket is designed and cured for easy stripping, allowing field personnel to quickly prepare cable ends for termination. This might seem like a minor feature, but in remote mining sites where specialized equipment isn't available, the ability to prepare cables quickly is valuable.

The dual grounding conductors provide redundancy—if one grounding path fails, the second maintains safety. The ground check conductor allows operators to verify that grounding continuity is established before energizing the cable.

The cable weighs approximately 982 pounds per 1000 feet for 4 AWG conductor (approximately 1,460 kg/km), making it manageable for field installation while still providing substantial mechanical protection.

The conductor construction uses multiple fine copper strands woven together, creating flexibility that allows the cable to bend and move with mining equipment while maintaining electrical integrity. The fine-stranded design is essential—solid conductors would break from the constant flexing in mining applications.

Why This Matters

Type G-GC cables cost significantly less per metre than specialized long-distance reeling cables, typically in the $15,000-$25,000 per kilometre range. However, in mining applications, cost-effectiveness is just one advantage. These cables are engineered to survive dust, temperature extremes, mechanical stress, and the general harshness of mining environments. They represent a balance between performance and cost that mining operators worldwide have embraced.

Industrial and Festoon Systems: Flexibility Over Distance

Indoor manufacturing facilities, warehouses, and industrial workshops typically operate overhead gantry cranes over moderate distances. These systems prioritize flexibility and repeated bending over the extreme distances and harsh environments of outdoor operations.

The Real-World Challenge: Australian Manufacturing Facility

Consider a modern automotive or heavy equipment manufacturing facility. Overhead gantry cranes move components along assembly lines, handling loads from a few hundred kilograms to perhaps 10 tonnes. The equipment operates indoors in climate-controlled environments. The cable hangs from a series of support trolleys that move along fixed paths, perhaps 30-50 metres in total span.

The cable must meet these requirements:

• High flexibility to bend repeatedly around support pulleys

• Reliable operation in climate-controlled indoor environments

• Easy installation and maintenance

• Cost-effectiveness for moderate-distance applications

• Suitable for frequent start-stop-reverse operation cycles

• Reliable performance across thousands of operating hours

The Solution: H07RN-F Flexible Rubber Cable

For this application, the H07RN-F flexible rubber cable represents an ideal choice. This cable has become the industry standard for festoon and gantry crane applications worldwide, and Australian manufacturers rely on it extensively.

H07RN-F cables feature:

• Class 5 flexible copper conductors according to BS EN 60228, providing excellent bendability without conductor fatigue

• EPR (ethylene-propylene rubber) Type EI4 insulation according to BS EN 50363 providing outstanding dielectric properties

• PCP (polychloroprene) Type EM2 outer sheath according to BS EN 50363, resistant to weather, oil, and mechanical damage

• Voltage rating of 450/750V, suitable for standard industrial three-phase power

• Temperature rating from -30°C to +60°C for fixed installation, with the option of +85°C for fixed protected installations

• Flexing temperature range from -15°C to +60°C, accommodating dynamic movement in typical manufacturing environments

• Minimum bending radius of 4 times overall diameter for fixed installation, and 6 times overall diameter for flexed (moving) applications

• Standardized core identification: Blue and Brown for 2-core cables, Green/Yellow, Blue, and Brown for 3-core cables, with additional colour coding for 4, 5, and 6 core configurations

• Black outer sheath colour for standard identification

• Compliance with BS EN 50525-2-21, BS EN 60811-2-1, and BS EN/IEC 60332-1-2 standards

Dimensional and Performance Specifications

H07RN-F cables come in numerous configurations, from single-core cables down to 1.5mm² cross-section up to 19-core cables with 1.5mm² per conductor. A typical 3-core configuration at 2.5mm² per conductor would have dimensions of approximately 11.48mm overall diameter, with a nominal weight of 123 kg/km.

For current carrying capacity, a 3-core 2.5mm² cable carries 20 amps in three-phase AC, perfectly suitable for light to moderate industrial loads. For higher loads, larger cross-sections are available—a 3-core 10mm² configuration carries 47 amps at 60°C conductor temperature, while a 3-core 25mm² configuration carries 83 amps.

The voltage drop performance is excellent for moderate distances. A 3-core 2.5mm² cable experiences voltage drop of 19 mV/A/m in three-phase AC, meaning a 50-metre cable run carrying 20 amps would experience approximately 19 volts drop—manageable for most industrial applications.

The cable's flexibility is exceptional. Even after years of use, H07RN-F cables maintain their bendability, continuing to flex smoothly around pulleys without insulation cracking or internal conductor damage. The Class 5 flexible copper stranding allows the cable to be coiled or bent repeatedly without work-hardening the copper.

Why This Matters

H07RN-F cables cost significantly less than mining-grade or specialized long-distance reeling cables—typically in the $8,000-$15,000 per kilometre range. For moderate-distance festoon applications, the cost advantage is substantial. More importantly, the cable's proven track record in millions of industrial installations worldwide means reliability is assured. Australian manufacturing facilities can confidently specify H07RN-F cables knowing they'll operate reliably for 8-10+ years in typical manufacturing environments.

Matching Cable Structure to Application: The Decision Framework

Now that you understand the cable types available and have seen how they're applied in different scenarios, let's establish a systematic decision framework. The right cable choice depends on matching cable structure to application requirements.

When to Choose Specialized Reeling Cables with Advanced Sheathing

If your cable will operate in harsh outdoor environments, experience extreme UV exposure, withstand repeated reeling cycles, span very long distances, or resist salt-air corrosion, you need a cable with advanced outer sheath materials. PUR-sheathed cables or other high-performance materials represent the investment needed for long-term reliability in these conditions.

These cables are expensive—often $40,000-$80,000+ per kilometre—but they deliver exceptional performance where inferior cables would fail in 2-3 years. Calculate your true cost of ownership: a $50,000 cable that lasts 10 years costs $5,000 per year. A $20,000 cable that lasts 2.5 years costs $8,000 per year, and you have the hassle of frequent replacement.

Outdoor cranes at coastal ports like Port Hedland, long-distance reeling systems in mining operations, and equipment exposed to harsh environmental stresses all benefit from investing in advanced sheath materials.

When to Choose Industrial-Grade Mining Cables Like Type G-GC

If your equipment operates in harsh industrial environments—mining, quarrying, extreme temperature conditions—but doesn't require the long-distance capabilities or specialized materials of ultra-premium cables, industrial-grade mining cables like Type G-GC represent the optimal balance.

Type G-GC cables cost less than specialized long-distance cables ($15,000-$30,000 per kilometre) but are engineered specifically for harsh conditions. They feature heavy-duty insulation, robust jacket construction, and safety features like ground check conductors. They're the standard choice for mining equipment worldwide because they provide the necessary durability at a reasonable cost.

The cable's engineering specifically addresses mining requirements—easy-strip jacket for field termination, dual grounding conductors for redundancy, ground check conductor for safety verification, and EPR insulation that maintains flexibility across the extreme temperature swings typical in Australian mining operations.

When to Choose High-Flexibility General-Purpose Cables Like H07RN-F

If your cable operates in controlled indoor environments, spans only moderate distances, and experiences primarily bending stress rather than extreme tensile stress, high-flexibility cables like H07RN-F are ideal. These cables cost significantly less ($8,000-$15,000 per kilometre) while delivering excellent performance in their intended environments.

Australian manufacturing facilities, indoor warehousing operations, and climate-controlled industrial settings are perfect applications for these cables. The cable's proven track record in millions of installations worldwide means you're selecting a mature, reliable technology. The Class 5 flexible copper conductors ensure the cable maintains bendability even after years of repeated flexing around pulleys.

Common Mistakes in Cable Selection: What to Avoid

Understanding what not to do is as important as understanding what to do. Here are the most common cable selection mistakes, and why they cost money:

Mistake #1: Choosing Based on Purchase Price Alone

This is by far the most common mistake. Decision-makers look at three cable options and pick the cheapest. They save perhaps 30% on material cost and feel they've made a smart purchasing decision.

However, they've often made a terrible decision when total cost of ownership is calculated. A cable that fails in 2-3 years instead of 8-10 years doesn't save money—it costs money in replacement labour, downtime, and lost production.

Always calculate the true cost per year of operation. If Cable A costs $30,000 and lasts 10 years, that's $3,000/year. If Cable B costs $20,000 and lasts 2.5 years, that's $8,000/year. Cable A is actually 2.67 times cheaper per year, despite costing 50% more upfront.

Mistake #2: Specifying a Cable for the Wrong Environment

A cable designed for indoor use, installed outdoors, will fail prematurely due to UV degradation and environmental stress. A cable designed for oil-free industrial environments, installed in an oily mining operation, will degrade rapidly as oil penetrates the insulation. Type G-GC cables designed for mining environments would be overspecified and unnecessarily expensive for indoor manufacturing use, while H07RN-F cables designed for indoor manufacturing would fail within months in a Pilbara mining operation.

Before selecting a cable, clearly document the actual environmental conditions where it will operate. Don't assume "close enough" will work. Environmental stresses are unforgiving.

Mistake #3: Undersizing for Future Growth

Many facilities plan cable installations expecting "no growth" in the near future. Then, three years later, they need to add additional equipment or increase capacity. The cable that seemed adequate at installation is now marginal.

Proper cable selection includes consideration of potential future growth. If there's any likelihood of increasing loads, specify cable with additional margin to accommodate future expansion. The cost difference between a cable rated for current load versus a cable rated for likely future load is often surprisingly small.

Mistake #4: Ignoring the Specific Mechanical Stresses of Your Equipment

Not all cables are suitable for all equipment. A cable that works fine in a stationary application might fail rapidly in a rotating application if it lacks torsion protection. A cable that works fine in a short-distance installation might fail under the weight stresses of a very long-distance application.

Understanding your specific mechanical stresses—how the cable will move, bend, rotate, and flex—is fundamental to proper selection. Mining equipment that rotates requires cables engineered for torsional stress. Port cranes that reel cable from drums require cables engineered for tensile stress. Manufacturing gantry cranes that bend around pulleys require cables engineered for bending stress.

If you're uncertain about the specific stresses your equipment will impose on the cable, consulting with cable engineers who understand your specific application is worth the investment.

Quick Cable Selection Checklist

Before finalizing your cable selection, work through this checklist. Each answer points you toward appropriate cable types.

Environmental Conditions

Is your cable exposed to outdoor conditions? If yes, you need excellent UV and weather resistance. This typically points toward PUR-sheathed specialized reeling cables or Type G-GC industrial-grade cables. If no, general-purpose cables like H07RN-F are suitable.

Is your location coastal (salt-air exposure)? If yes, you need exceptional salt-air corrosion resistance. PUR-sheathed cables are optimal.

Are extreme temperature ranges involved (-20°C to +55°C or greater)? Type G-GC is engineered for this range. H07RN-F operates from -30°C to +60°C. Standard cables might not be suitable for extreme ranges.

Is your cable exposed to oil or chemical environments? Type G-GC has excellent oil resistance. H07RN-F has acceptable resistance. Some standard cables don't handle oil exposure well.

Electrical Requirements

What voltage does your equipment operate at? What amperage does it draw? Ensure the cable is rated for at least these values, with some margin for voltage drop in very long cable runs.

Distance and Stress

How long is the cable run? Specialized long-distance reeling cables (40+ metres), Type G-GC mining cables (up to 50+ metres), or general-purpose cables like H07RN-F (up to 50 metres practical) each have appropriate distance ranges.

How will it be installed—reeled, festooned, fixed, or mobile?

Does the equipment rotate while operating? If yes, you need torsion-rated cable. Type G-GC mining cables are designed for this. PUR-sheathed mining cables have torsion protection. Standard H07RN-F isn't designed for continuous torsional stress.

How much weight will the cable support? Very long hanging lengths mean the cable must support its own weight plus equipment load. This is most critical for specialized reeling cables.

Operating Environment

Is the installation indoors or outdoors? Climate-controlled or exposed? This single question often determines whether you can use general-purpose cables like H07RN-F or whether you need industrial-grade Type G-GC or specialized PUR-sheathed cables.

Consulting with Cable Specialists: When and Why to Seek Expert Help

While this guide provides comprehensive information for making cable selection decisions, some applications benefit from professional consultation. Cable engineers who specialize in your specific industry can provide valuable expertise that might prevent costly mistakes.

When to Consult with Specialists

Consult with cable engineers if your application involves extremely long cable runs (150+ metres), if you're operating in harsh environments you've never worked with before, if you have unusual mechanical stresses (equipment that rotates, accelerates, or moves in complex patterns), or if cable failure would be catastrophically expensive (production stoppage would cost tens of thousands of dollars per day).

Cable specialists can review your specific requirements, evaluate potential cable options, provide technical justification for their recommendations, and help you understand the true cost of ownership for different choices.

What Cable Specialists Need to Know

When consulting with cable specialists, provide comprehensive information about your application. Include the voltage and amperage requirements, the actual installation configuration (reeling, festooned, fixed, mobile), the cable length, the mechanical stresses (pulling, bending, rotation, impact), the environmental conditions (temperature range, UV exposure, oil/chemical exposure, salt-air exposure), and the criticality of reliability (what happens if the cable fails?).

The more information you provide, the better the specialist can tailor recommendations to your specific situation.

Summary: Making the Right Cable Choice

Proper cable selection is a systematic process that requires understanding your electrical requirements, environmental stresses, mechanical stresses, and installation configuration. It requires calculating true cost of ownership rather than focusing on purchase price alone. It requires resisting the temptation to choose the cheapest option without considering consequences.

The cable types discussed in this guide—specialized long-distance reeling cables with advanced sheaths for harsh coastal environments, industrial-grade mining cables like Type G-GC for tough mining and industrial applications, and flexible general-purpose cables like H07RN-F for moderate-distance indoor applications—represent the current engineering standards for their respective applications.

Australian industrial operations, from the container cranes at Port Hedland to the bucket excavators in the Pilbara to the manufacturing facilities throughout the country, depend on proper cable selection for reliable operation. Take the time to assess your actual requirements, understand the cable options available, and make decisions based on total cost of ownership rather than purchase price alone.

The investment in proper cable selection pays dividends in reliability, reduced downtime, and reduced long-term costs. Your future self will thank you for making the right choice today.

Need Help Selecting the Right Cable for Your Application?

If you're uncertain about which cable type suits your specific operation, or if you need technical guidance on cable specifications, consulting with cable engineers who understand your industry and your specific requirements is a worthwhile investment. The cost of consultation is typically recouped many times over through avoiding costly cable selection mistakes.

Professional cable selection guidance helps ensure your equipment operates reliably when you need it to operate. That reliability is worth far more than the cost of the consultation.

Take the time to get cable selection right. Your operation will run better, costs will be lower, and downtime will be minimized. That's the real benefit of proper engineering decision-making.
