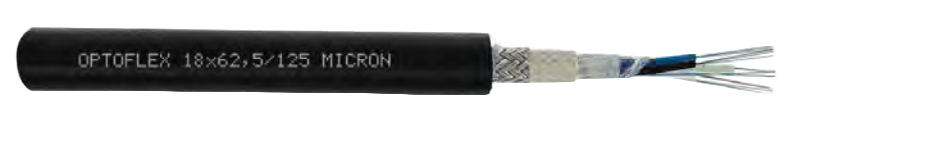

Crane Fiber Optic Cable - OPTOFLEX G62.5/125, G50/125, E9/125
Large bandwidth solution with complete electromagnetic interference immunity
$15.00
Application
Flexible fibre optic cable for signal and data transmission on cranes and material handling equipment; suitable for cable handling systems, such as reels, festoon systems, cable tenders, etc. at high data rates, large bandwidth and absolute immunity to electromagnetic interference.
Design features

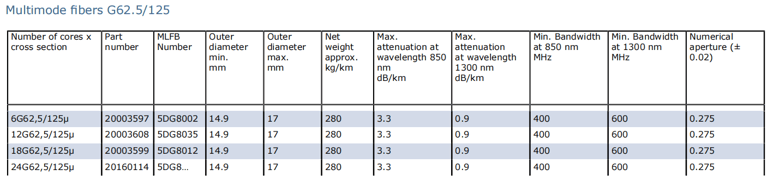

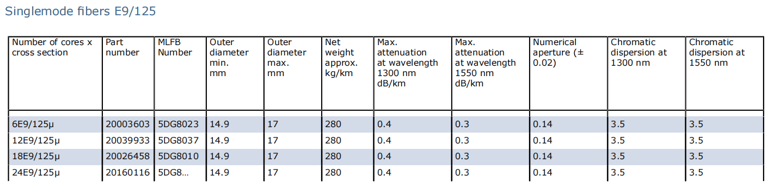

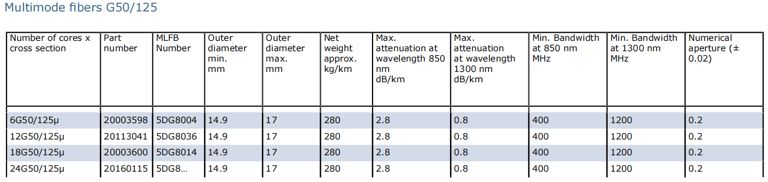

Optical Fiber Fibre core diameter: 62.5 μm, 50 μm or 9 μm;
Diameter across the cladding: 125 μm;
Diameter over the coating: 250 μm;
Fiber coding Specially developed colour code for identification of the individual fibres
Fiber covering Hollow core with filling compound, Basic material: ETFE, Compound: 7YI 1, Natural color
Core arrangement Six cores, especially laid-up in one layer around a GFK supporting element (GFK=glass-fibre
reinforced plastic)
Inner sheath Special compound
Reinforcement Special braid made of polyester threads. Surface covered: approx. 80%
Outer sheath Basic material PCP, rubber compound 5GM3
Colour black
Chemical parameters
Resistance to oil Acc. to DIN EN 60811-404 and DIN VDE 0473-811-404, paragraph 10
Weather resistance Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture
Thermal parameters
Ambient temperature for fixed installation min -40 °C ; max +80 °C Ambient temperature in fully flexible operation min -35 °C ; max +80 °C
Mechanical parameters
Max. tensile load 500 N
Torsional stress ± 50 °/m
Min. bending radius - fixed installation and on festoon system: 125 mm;
- for reeling: 250mm;
Min. distance with S-type directional changes 20 x D (D=cable diameter)
Travel speed - Gantry (reeling operation): up to 120 m/min (no random wound reel, cylindrical reel);
- Trolley (festoon systems): up to 240 m/min (festoon, cable tender);
