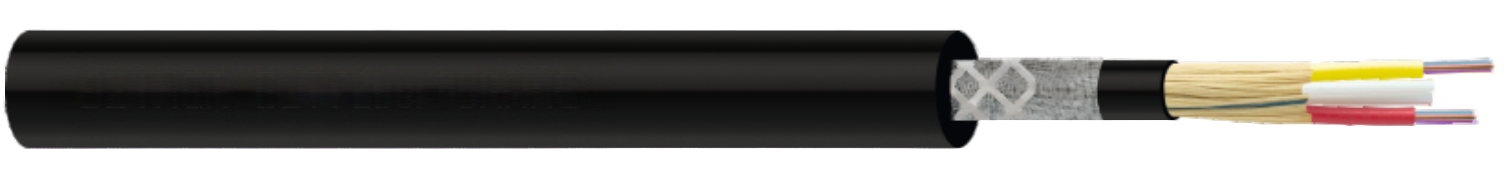

CRANE FO 2x12 …/125 Flexible Heavy-Duty Optical Cable, Low Voltage, UV & Flame Resistant
For outdoor telecommunication, industrial reeling systems, and mobile material handling with CPR certification
$25.00
Design: |
|
Optical fiber element: E9 design: tube 1 - yellow: 12 fiber E9/125 tube 2 - red: 12 fiber E9/125 G62,5 design: tube 1 - blue: 12 fiber G62,5/125 tube 2 - red: 12 fiber G62,5/125 G50 design: tube 1 - green: 12 fiber G50/125 tube 2 - red: 12 fiber G50/125 |
combination of fiber types (e.g.: 12G50 + 12G62,5) on request |
Synthetic strain relief elements |
|
Jacket: thermoplastic elastomer TPE |
Separating tapes Reinforcement: braid made of high tec multifilament threads, non-hygroscopic and low shrinkage |
|
Outer sheath: heavy duty rubber compound, type 5GM5 acc. to DIN VDE 0207-21, colour: black, inkjet marking |
Technical data: |
|
Thermal parameters: Permissible ambient temperature: - transportation / storage: -40 oC / 80 oC - free moving / festoon application: -30 oC / 80 oC Mechanical parameters: |
Bending radius: ≥250 mm Max. continous load in operation: 2000 N Reeling speed: ≤120 m/min |
|
Chemical parameters: |
|
Resistance to oil: IEC 60811-404 Behaviour in case of fire: IEC 60332-1-2 Weather resistance:unrestricted use indoors, outdoors, resistance to ozone, UV and moisture |
Application:
On reeling systems for long distance communication network (LDN) e.g. optical PROFIBUS networks with special application requirements on mobile material handling equipment, small motor driven reelsand spring driven reels.
