Crane Reeling Cable Systems for Australian Ports: What They Are and How to Choose the Right One

Introduction: Why Reeling Systems Matter in Australian Ports

Australia's port infrastructure operates in some of the world's most demanding marine environments. From the bustling container terminals of Sydney Harbour to the iron ore facilities of Port Hedland, and the automotive import hubs of Melbourne and Fremantle, these critical facilities face relentless exposure to salt spray, extreme UV radiation, and the mechanical stresses of continuous heavy-duty operations.

Port cranes operate in dynamic, corrosive, and high-stress environments—especially in coastal cities like Sydney, Fremantle, and Melbourne, where salt concentrations in the air can exceed 40,000 parts per million. These conditions create unique challenges for electrical systems, as power and control cables must move seamlessly with the crane's boom or trolley without tangling, wearing, or failing under extreme environmental pressure.

The constant movement of modern port cranes—whether extending booms over 70 metres to reach across ultra-large container vessels or travelling hundreds of metres along quay walls—demands sophisticated cable management solutions. Traditional fixed cable installations simply cannot accommodate the dynamic requirements of contemporary port operations.

Enter crane reeling cable systems with advanced crane reel system technology: mechanical marvels designed to manage marine-grade flexible crane cable deployment in real time, safely and reliably. These reel-driven power supply for cranes represent the cutting edge of port crane technology, ensuring uninterrupted power and control connectivity whilst withstanding the harsh realities of Australian coastal environments. The specialised reeling cable for Australian ports must meet stringent requirements for durability, flexibility, and environmental resistance.

What Are Crane Reel Systems?

A crane reel system is a sophisticated mechanical apparatus, either spring-driven or motor-driven, that automatically winds and unwinds cables during crane movement. Think of it as a massive, industrial-grade fishing reel that constantly adjusts cable length to match the crane's operational requirements.

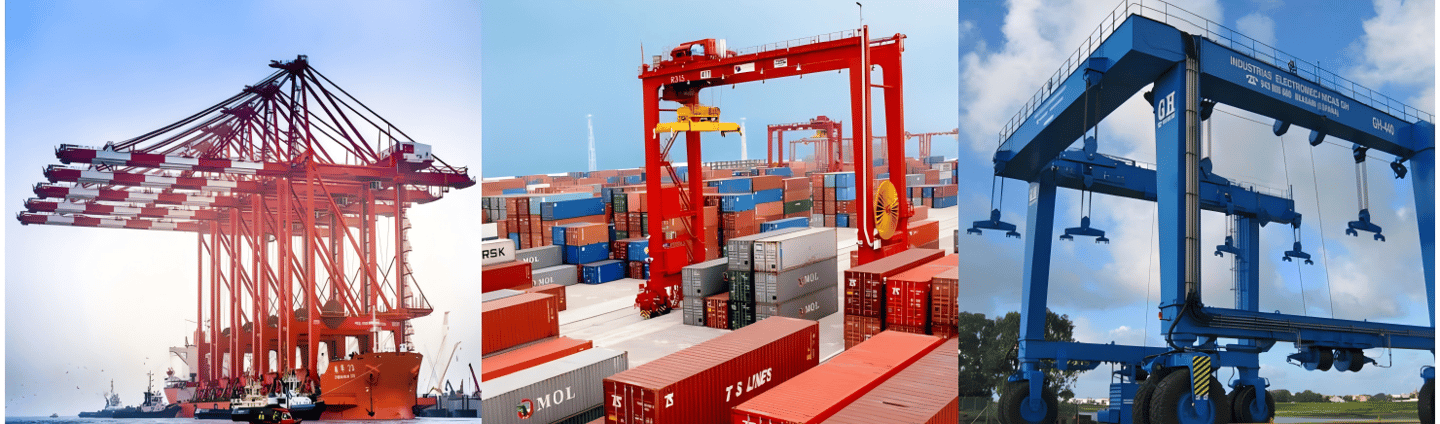

These systems are extensively used across various types of port equipment, including Ship-to-Shore cranes (STS), mobile harbour cranes, RTG (Rubber-Tyred Gantry) and RMG (Rail-Mounted Gantry) cranes, and bulk handling equipment. Each application presents unique challenges in terms of cable length, tension requirements, and environmental exposure.

The fundamental difference between motor-driven and spring-driven reel systems lies in their operational mechanics and control precision. Motor-driven systems utilise electric motors with sophisticated control algorithms to precisely manage cable tension and deployment speed. These systems excel in applications requiring precise cable positioning and can accommodate longer cable runs with greater accuracy.

Spring-driven systems, conversely, rely on mechanical springs to maintain constant cable tension. Whilst simpler and more cost-effective, these systems are typically limited to shorter cable runs and applications where precise tension control is less critical. However, they offer exceptional reliability and require minimal maintenance, making them ideal for remote or challenging environments.

The choice between motor-driven and spring-driven systems depends on factors such as cable length, operational speed, precision requirements, and maintenance accessibility. Australian ports often favour motor-driven systems for their precision and ability to handle the extreme cable lengths required for modern container handling operations.

What is a Crane Reeling Cable?

A crane reeling cable represents a highly specialised electrical conductor engineered specifically for dynamic movement, continuous bending, and extreme tension applications. Unlike standard industrial cables, reeling cables must withstand millions of flex cycles whilst maintaining electrical integrity and mechanical strength.

The construction of professional reeling cables incorporates highly flexible copper conductors, typically Class 5 or Class 6 stranding, which provides exceptional flexibility whilst maintaining excellent electrical conductivity. This fine stranding is crucial for applications where cables experience constant coiling and uncoiling during normal operations.

The outer sheath utilises advanced PUR (polyurethane) materials that offer superior resistance to UV radiation, oil contamination, mechanical abrasion, and saltwater corrosion. This comprehensive protection is essential for Australian port environments where cables face direct exposure to harsh marine conditions.

Many reeling cables feature integrated Kevlar tension cores, which provide additional mechanical strength and prevent cable elongation under high tension loads. This reinforcement is particularly important in applications where cables must support their own weight over extended lengths whilst maintaining structural integrity.

Advanced reeling cables may include integrated optical fibre cores for smart port communication systems. These hybrid cables enable high-speed data transmission alongside power delivery, supporting the sophisticated automation and monitoring systems increasingly common in modern Australian ports.

The entire cable assembly is specifically designed for reel winding applications in crane booms or hoist tracks, with carefully controlled bend radii and tension characteristics that ensure reliable operation throughout the cable's service life.

Benefits of Using Purpose-Built Reeling Cable for Port Cranes in Australia

The harsh marine environment of Australian ports demands cables that can withstand extreme UV exposure and persistent salt spray conditions. Purpose-built reeling cable for port cranes in Australia offers comprehensive protection against these environmental challenges, ensuring reliable operation even in the most demanding coastal settings.

These specialised cables excel in handling long travel distances, with some installations accommodating cable runs up to 300 metres or more. This capability is essential for modern container terminals where STS cranes must reach across increasingly wide vessel berths whilst maintaining uninterrupted power and control connectivity.

The continuous flexing and coiling action of reel systems can quickly destroy conventional cables, leading to signal loss, power interruptions, and costly cable breakage. Purpose-built reeling cables prevent these failures through superior construction techniques and materials specifically selected for dynamic applications.

Maintenance requirements for properly specified reeling cables are significantly lower compared to festoon systems, particularly in windy coastal environments where festoon carriers can experience mechanical stress and alignment issues. The enclosed nature of reel systems provides additional protection against environmental contamination and mechanical damage.

Australian ports benefit from reduced downtime, lower maintenance costs, and improved operational reliability when using purpose-built reeling cables compared to adapted general-purpose alternatives.

Types of Crane Reeling Cables Available: Heavy Duty Reel Cable for RTG Cranes

The selection of reeling cables encompasses several critical design variations, each optimised for specific applications and operational requirements. Understanding these options is essential for selecting the most appropriate solution for your port crane applications.

Flat reeling cables versus round reeling cables represent the primary geometric distinction. Flat cables offer superior space efficiency on reel drums and typically provide better heat dissipation due to increased surface area. However, round cables often demonstrate superior mechanical properties and are generally more suitable for applications involving significant tension loads.

Heavy duty reel cable for RTG cranes requires enhanced construction to withstand the demanding operational cycles and environmental conditions typical of rubber-tyred gantry operations. These cables feature reinforced conductor stranding and robust outer sheaths designed specifically for the continuous flexing and high tension loads characteristic of RTG applications.

Cables with integrated optical fibre cores versus power-only configurations address the growing demand for smart port communication systems. Hybrid cables combining power delivery with high-speed data transmission enable sophisticated crane automation and monitoring capabilities whilst simplifying installation and maintenance requirements.

Voltage ratings extend up to 0.6/1kV, accommodating the power requirements of modern port crane systems. Higher voltage capabilities enable more efficient power transmission and reduced conductor sizes, particularly important for long cable runs where weight becomes a significant factor.

The choice between PUR, rubber, and TPE outer sheaths depends on specific environmental conditions and operational requirements. PUR offers exceptional UV and chemical resistance, making it ideal for Australian port environments. Rubber provides excellent mechanical properties and temperature stability, whilst TPE offers superior flexibility and processing characteristics.

UV and saltwater resistant reeling cable for coastal port terminals represents a critical specification for Australian applications. These cables incorporate advanced polymer formulations and protective additives that maintain integrity despite continuous exposure to harsh marine conditions. The combination of UV stabilisers and salt-resistant compounds ensures long-term performance in Australia's challenging coastal environment.

Certification options include IEC international standards, RoHS compliance for environmental considerations, and optional AS/NZS alignment for specific Australian regulatory requirements. These certifications ensure compatibility with existing port infrastructure and regulatory compliance.

How to Select Reeling Cable for Ship-to-Shore Cranes in Australia

Selecting the appropriate reeling cable system requires careful evaluation of multiple operational and environmental factors. Travel length represents the primary consideration, as it directly impacts cable weight, tension requirements, and reel system specifications.

When determining how to select reeling cable for ship-to-shore cranes in Australia, several unique factors must be considered. The extreme reach requirements of modern STS cranes—often extending 70+ metres across ultra-large container vessels—demand cables with exceptional flexibility and tensile strength. Australian ports also face unique environmental challenges including intense UV radiation, salt spray, and temperature variations that can exceed 50°C difference between summer and winter conditions.

Tensile load calculations must account for the cable's own weight, additional loads from integrated optical fibres or auxiliary conductors, and safety factors for dynamic loading conditions. Australian ports often experience high wind loads that can significantly increase cable tension requirements.

Acceleration speeds and operational frequencies determine the required flexibility characteristics and fatigue resistance of the cable construction. High-speed operations demand cables with superior flex life and precise tension control systems.

Climate exposure considerations include UV intensity, salt spray concentration, temperature variations, and precipitation patterns. Australian coastal environments present unique challenges that require careful material selection and protective measures.

A comprehensive cable specification checklist should include conductor sizing, voltage ratings, environmental protection requirements, mechanical strength specifications, and integration compatibility with existing crane systems.

Customisation options encompass colour coding for identification purposes, custom markings for traceability, and hybrid signal/power core configurations tailored to specific operational requirements. These customisation capabilities ensure optimal integration with existing port infrastructure.

Applications in Real-World Australian Ports

Brisbane Port's container terminals represent excellent examples of reeling cable system implementation. The port's STS cranes utilise sophisticated motor-driven reel systems with hybrid power and fibre optic cables to support automated container handling operations whilst withstanding the challenging subtropical marine environment.

Fremantle's bulk cargo cranes demonstrate the versatility of reeling cable systems in heavy-duty applications. These installations feature robust spring-driven systems with heavy-duty reeling cables designed to handle the extreme mechanical loads associated with iron ore and grain handling operations.

Melbourne's RTG crane retrofits showcase the adaptability of modern reeling cable systems. Existing crane infrastructure has been successfully upgraded with contemporary reel systems, improving reliability and reducing maintenance requirements whilst extending operational life.

Compatibility with major crane manufacturers including Konecranes, Liebherr, and ZPMC ensures that reeling cable systems can be integrated with existing port infrastructure. This compatibility is crucial for Australian ports seeking to upgrade their electrical systems without major structural modifications.

The success of these installations demonstrates the practical benefits of purpose-built reeling cable systems in real-world Australian port environments.

Why Choose Our Reeling Cable Solutions?

Export-ready compliance ensures seamless integration with Australian port operations through adherence to international standards and optional local certifications. Our products arrive ready for installation without regulatory delays or compatibility concerns.

Custom-built construction for port-grade performance means every cable is engineered specifically for the demanding requirements of marine crane applications. This specialisation translates to superior reliability and extended service life compared to general-purpose alternatives.

Technical consulting services provide expert guidance for cable selection and layout planning, ensuring optimal system performance and cost-effectiveness. Our experienced engineers understand the unique challenges of Australian port environments and can provide tailored solutions for specific operational requirements.

Common Cable Problems and Solutions

Q: What causes premature failure in crane reeling cables?

A: The most common causes include inadequate flexibility for the application, insufficient UV protection, salt corrosion, and mechanical wear from improper tension control. Our purpose-built reeling cables address these issues through superior construction and materials specifically selected for marine crane applications.

Q: How do I determine the correct cable specification for my crane reel system?

A: Consider the travel distance, operational speed, tension requirements, and environmental exposure. Our technical team can provide detailed calculations and recommendations based on your specific crane model and operational parameters.

Q: Can reeling cables handle the extreme conditions of Australian coastal ports?

A: Absolutely. Our cables are specifically designed for harsh marine environments with comprehensive protection against UV radiation, salt spray, and mechanical stress. Field testing in Australian conditions confirms superior performance compared to general-purpose alternatives.

Q: What maintenance is required for reeling cable systems?

A: Regular inspection of cable condition, reel mechanism lubrication, and tension system calibration are essential. Our cables are designed to minimise maintenance requirements through superior durability and resistance to environmental factors.

Q: What's the difference between motorised reel cable vs spring reel cable comparison for Australian port applications?

A: Motor-driven systems provide precise tension control and accommodate longer cable runs, making them ideal for large STS cranes and automated operations. Spring-driven systems offer simplicity and reliability for shorter applications like mobile harbour cranes. In the motorised reel cable vs spring reel cable comparison, motor-driven systems excel in high-precision applications but require more maintenance, whilst spring-driven systems provide cost-effective solutions for less demanding applications. Australian ports often choose motor-driven systems for their precision and ability to handle extreme cable lengths.

Ready to upgrade your port crane operations with reliable reeling cable systems designed specifically for Australian conditions?
