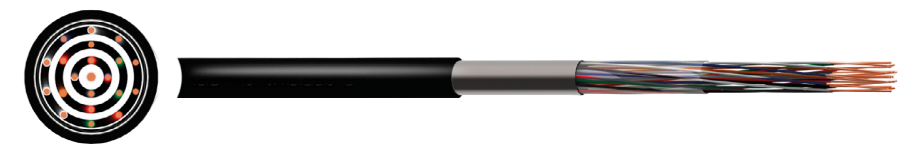

CW1308B Internal/External LSZH Telecom Cable
Cables primarily designed for the interconnection of telephone equipment both internally and externally.
$35.00
APPLICATION Cables primarily designed for the interconnection of telephone equipment both internally and externally. In addition these cables may be used for the interconnection of other communication and control equipment or low level signalling applications. The cable specification is further enhanced by the use of a LSZH (Low Smoke Zero Halogen) outer sheath. |
CHARACTERISTICS Temperature Rating 0°C to +70°C Minimum Bending Radius 15 x overall diameter |
CONSTRUCTION
Conductor
Class 1 solid copper
Insulation
PVC (Polyvinyl Chloride)
Separator
Polyester wrapping tape
Screen
Al/PE (Aluminium/Polyethylene) tape
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
● Black
